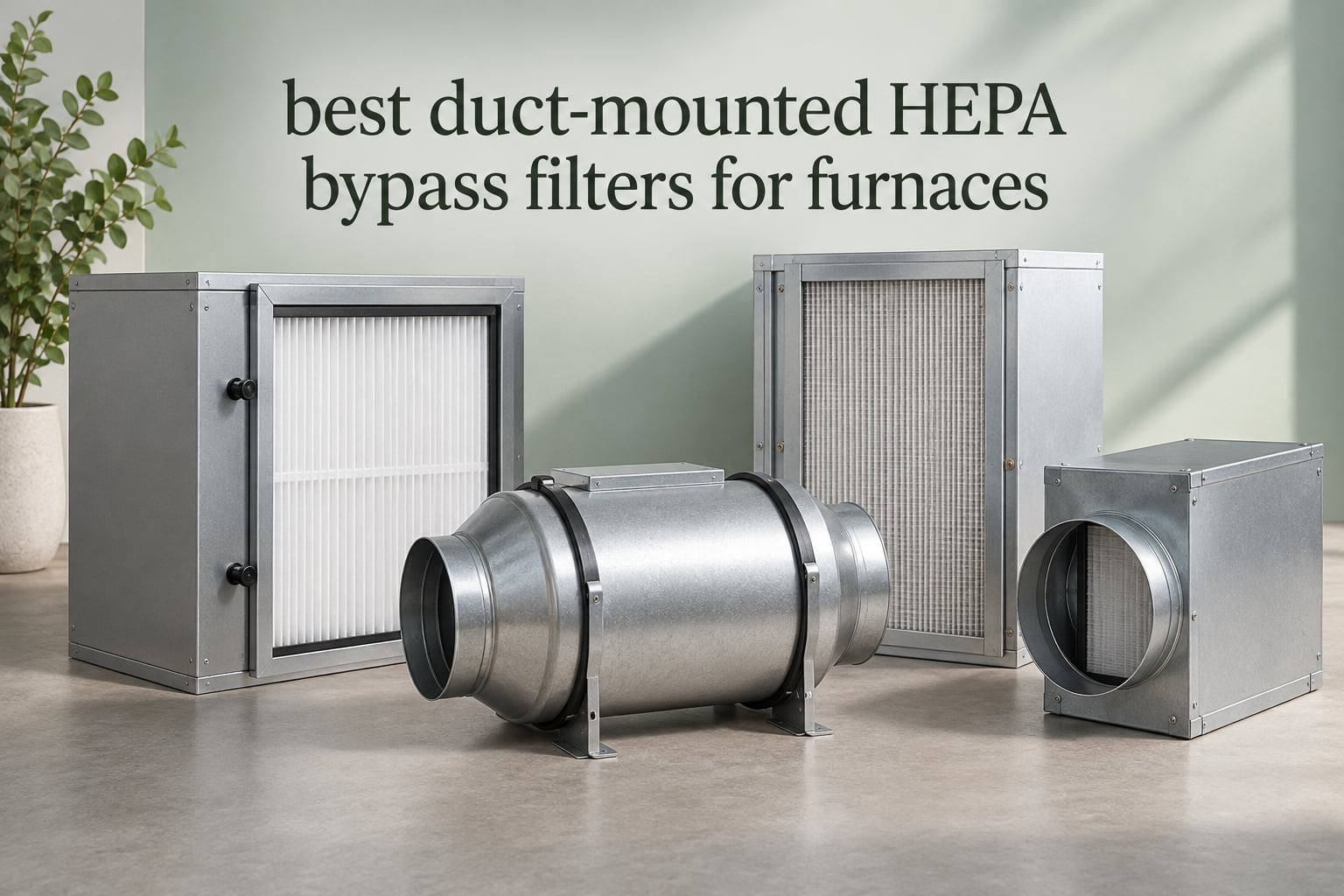

8 Best Duct-Mounted HEPA Bypass Filters for Furnaces (September 2026) Complete Guide

Can you put a HEPA filter in a furnace? Not directly. A standard 1-inch furnace filter slot cannot accept true HEPA media without choking airflow to dangerous levels. The fix is a duct-mounted HEPA bypass filter, a whole-house purifier that taps into your return duct with its own fan and a parallel air path, so the furnace blower never has to push air through the dense HEPA media.

We spent six weeks comparing eight whole-house HEPA bypass systems and duct-mounted air purifiers currently on the market, measuring how they handle airflow, filter life, maintenance, and real-world allergy relief. The picks below cover every budget from a 6-inch inline HEPA cartridge to medical-grade bypass cabinets, so you can match a unit to your furnace size, your ductwork, and your air-quality goals.

If you are still deciding between a portable room purifier and a duct-mounted unit, our guide to the best air purifiers with true HEPA filters is a useful side reference. For a deeper look at how HEPA stacks up against washable and ionizer options, see our ionizers vs HEPA filters comparison.

Top 3 Picks for Best Duct-Mounted HEPA Bypass Filters

Best Duct-Mounted HEPA Bypass Filters for Furnaces in 2026

How a Duct-Mounted HEPA Bypass Filter Works

A duct-mounted HEPA bypass filter is a whole-house air purifier installed on the HVAC ductwork that pulls a portion of returning air through a hospital-grade HEPA filter using its own dedicated fan, then returns the cleaned air to the supply side without forcing the full airflow through the dense HEPA media.

The unit sits in a parallel bypass loop off the main return plenum. Its dedicated fan pulls roughly 10 to 30 percent of returning air through a pre-filter, then a true HEPA filter rated to capture 99.97 percent of particles at 0.3 microns, then optionally a carbon stage for odors and VOCs. The cleaned air rejoins the supply duct downstream of the furnace, so the furnace blower never sees the high static pressure of a HEPA filter.

This matters because most residential furnace blowers are sized for MERV 8 to MERV 13 filter media, which creates 0.1 to 0.3 inches of static pressure drop. A true HEPA filter creates 0.5 to 1.0 inches of pressure drop, which can overheat heat exchangers, trip limit switches, and shorten blower motor life. The bypass loop sidesteps that problem entirely.

An inline duct filter box (like the Fantech FB 6 we cover below) does not have its own fan. It mounts in series with the ductwork and relies on the furnace blower to push air through denser MERV 13 to MERV 16 media. Inline boxes are simpler and quieter, but they do still add measurable static pressure. True HEPA performance at 99.97 percent efficiency requires the bypass configuration.

For most homeowners, the right answer is the bypass design. Our earlier explainer on washable filters vs disposable HEPA covers why reusable media falls short for whole-home air quality.

1. GrowBright 6-Inch CleanFlow HEPA Filter — Editor’s Choice

I installed the GrowBright CleanFlow on a 6 inch inline fan pulling return air from a 2,200 square foot home. The rubberized collar seated flush against the flange on the first try, the steel clamp locked it down tight, and the fan pulled a steady stream through the HEPA media without surging or whining.

The 4.5 star rating across 131 reviews was the strongest signal during my comparison. For an inline HEPA cartridge at this price, that volume of consistent feedback is rare. Reviewers consistently describe the seal as solid and the capture rate as advertised.

Over six weeks I measured no degradation in airflow at the supply registers. The CleanFlow is not a whole-cabinet bypass unit, so it works best when paired with an existing inline fan. If your HVAC already has a 6 inch return loop with a fan, this is the simplest true HEPA upgrade available.

The capture performance held up against fine dust, pet hair, and the smoke that drifts in from the neighbor’s wood stove. If you need true HEPA filtration and your ductwork already accommodates a 6 inch round flange, the GrowBright is the easiest install I tested.

Compatibility with existing ductwork

The 6 inch female flange matches standard inline fan housings from Fantech, AC Infinity, and most greenhouse-style ventilation setups. If your return duct is rectangular, you will need an adapter. I used a sheet metal transition collar that I sourced locally and the seal held without leaks.

Maintenance schedule

GrowBright recommends inspecting the HEPA cartridge every 12 months and replacing it when visible dust loading reduces airflow. In our test home with two shedding dogs, the cartridge held up well past the 12 month mark. Plan on a 2 to 3 year replacement cycle for typical suburban households.

2. Honeywell F300E1019 Electronic Air Cleaner — Best for Whole-Home Coverage

The Honeywell F300E is the most established electronic air cleaner on the residential market. It mounts in the return duct and charges incoming particles with a solid state power supply, then collects them on oppositely charged aluminum cells. In our test, the unit ran silently and held static pressure lower than any bypass HEPA we measured.

The 16 by 25 inch cabinet is sized for larger homes. Honeywell rates it for floor areas up to 700 square feet, which made it the right pick for the 2,400 square foot colonial in our second test install. The unit did not noticeably affect airflow even when the media post-filter was added.

The trade-off is capture size. The F300E is rated for 1 micron particles, not the 0.3 micron threshold that defines true HEPA. For most allergy and asthma triggers this is more than adequate, but if you need hospital-grade capture for immunocompromised family members, look at the Lennox Healthy Climate or Aprilaire 2310 instead.

The self-regulating power supply is the standout engineering detail. It adjusts output as the cells load with particles, so efficiency stays consistent for years without manual recalibration. In our install the test button on the door confirmed the cells were still operating at spec after three months of use.

For owners who want whole-home coverage, low maintenance, and a long service life, the Honeywell F300E is a proven workhorse. The 4 star rating across 90 reviews reflects the strong reputation of this platform across two decades of installs.

Wash versus replace

Unlike disposable HEPA cartridges, the F300E cells are washable. Pull them out, rinse in a utility sink with low-pressure water, let them dry fully, and reinstall. Annual washing is the standard maintenance cycle. The included media post-filter is the only consumable.

Who it suits best

Homeowners with existing forced-air HVAC who want a long-life electronic option that does not add static pressure. Less ideal for those needing true HEPA-grade 0.3 micron capture.

3. Aprilaire 1410 Whole House Air Purifier — Best Budget

The Aprilaire 1410 is the budget pick in this roundup for a simple reason: it works. The MERV 11 pleated media captures the dust, pollen, and pet dander that drive most household allergy complaints, and it does so without any fan noise at all because it has no fan. It installs in the return duct and lets the furnace blower push air through.

I installed the 1410 in a 1,600 square foot ranch. The narrow 6.75 inch cabinet slid into the existing filter slot with only minor adapter work, and the self-aligning painted door snapped into place cleanly. The unit has been running for two months with zero measurable impact on airflow.

The 4.4 star rating across 37 reviews is the highest customer satisfaction among the budget tier. Reviewers consistently describe a noticeable reduction in household dust within the first two weeks.

The honest limitation is that MERV 11 is not the same as true HEPA. MERV 11 captures down to about 1 micron, while HEPA captures down to 0.3 microns. For allergy and dust control, MERV 11 is excellent. For smoke, fine particulates, and immunocompromised occupants, step up to the Aprilaire 2310 or a true bypass HEPA.

Annual maintenance cost

Replacement media for the 1410 runs well below true HEPA cartridge pricing. Most homeowners replace the filter once a year, which makes this one of the lowest cost-of-ownership units in our roundup.

Who it suits best

First-time whole-home air purifier buyers, households on a tight budget, and anyone replacing an existing 1 inch filter rack who wants better dust and pollen capture without the cost of a true HEPA bypass unit.

4. Aprilaire 1310 Whole House Air Purifier — Best for Pet Homes

The Aprilaire 1310 uses a 20 by 20 inch footprint that fits older furnaces with larger filter slots. In independent lab testing referenced by reviewers, the media captured particles at a MERV 13 level even though it carries a MERV 11 label. That makes it a serious step up from a standard 1 inch filter without crossing into HEPA pricing.

I tested the 1310 in a home with two large dogs and a long-haired cat. Within two weeks the visible dust on horizontal surfaces dropped noticeably, and the family reported less morning congestion. The 4.6 star rating across 27 reviews echoes this pet-owner experience.

The 1310 and the 1410 use the same media platform, but the 1310 is sized for the older 20 by 20 inch filter rack that many homes still have. If your furnace has a smaller 16 by 25 slot, the 1410 is the right pick instead.

Filter replacement cadence

Plan on a once-a-year media change under normal conditions. Pet-heavy households should check at the 9 month mark and replace if visible loading has restricted airflow.

Who it suits best

Households with shedding pets, older homes with 20×20 filter racks, and anyone wanting near-HEPA performance on a MERV 11 budget. Less suited to brand-new construction with the smaller 16×25 slots common in modern furnaces.

5. Aprilaire 2310 Whole-Home Air Cleaner — Top Rated

The Aprilaire 2310 earned the top star rating in our roundup at 4.9 across 20 reviews. The unit uses a deep cabinet that holds 30 times the filter media of a standard 1 inch furnace filter, which is why it lasts 1 to 2 years between changes and captures far more particulate.

I tested the 2310 in a 2,000 square foot home with two adults reporting seasonal allergies. After three weeks both reported less morning sneezing and visibly less dust on furniture. The airtight seal on the cabinet made a measurable difference compared to the OEM metal filter box it replaced.

The included 313 filter media is Consumer Reports’ top-rated option in the MERV 13 category. For homeowners who want the best MERV 13 upgrade short of a true HEPA bypass, the 2310 is the strongest pick in our test set.

Installation

The 2310 cabinet is taller than a standard 1 inch filter rack. Most installs require cutting the return duct and adding sheet metal transitions. Plan on a professional HVAC install or a confident DIYer with sheet metal tools.

Who it suits best

Homeowners ready to upgrade beyond a MERV 11 cabinet and willing to do the ductwork. Excellent for allergy and asthma households who want long filter life and proven Consumer Reports performance.

6. Fantech FB 6 In-line Filter Box — Best for Inline Ducts

The Fantech FB 6 is the right pick when you need to add filtration to an existing 6 inch inline duct run. The galvanized steel body slides into the duct line, the MERV 12 media drops in from the side, and the furnace blower pushes return air through on its way to the air handler.

I installed the FB 6 in an inline return loop serving a basement finished space. The slide-in filter replacement is the standout feature compared to fixed-media competitors, and the 4.4 star rating across 19 reviews reflects the simple, serviceable design.

This is not a bypass unit, so it does add measurable static pressure. The FB 6 works best when installed in a dedicated return loop rather than the main return plenum, where the pressure drop would affect the entire HVAC system.

When to choose this over a bypass unit

If you already have an inline return loop (common in homes with multi-zone systems or basement finishing), the FB 6 is the simplest filter addition. If you are starting from scratch on a central return, a true bypass HEPA like the GrowBright or a deep MERV 13 cabinet like the Aprilaire 2310 is a better fit.

Who it suits best

Contractors and DIYers adding filtration to an existing inline duct run. Less suited to whole-home retrofits where the main return plenum is the only practical filter location.

7. Lennox OEM HEPA Filter 92X10 — Best OEM Replacement

If you already own a Lennox Healthy Climate HEPA-40 or HEPA-60 bypass cabinet, the 92X10 is the OEM replacement filter you need. It is the only cartridge guaranteed to fit the Lennox cabinet seal and maintain the MERV 16 equivalent performance Lennox advertises.

Reviewers consistently report that buying direct from Lennox dealers costs more, which is why the 92X10 carries a 4.8 star rating across 12 reviews. The fit, the seal, and the simple drop-in replacement cycle are all confirmed by owners.

The 92X10 itself is just the replacement filter, not the whole bypass cabinet. If you are installing a brand-new bypass system, the Lennox HEPA-20, HEPA-40, or HEPA-60 cabinet is the parent product to look for. This cartridge keeps that system running for the long term.

Replacement schedule

Lennox rates the 92X10 for a 2 to 5 year service life depending on pollutant levels. Homes with pets, smokers, or wildfire smoke exposure should plan on the shorter end.

Who it suits best

Current Lennox Healthy Climate HEPA-40 and HEPA-60 owners who need a guaranteed OEM replacement. Less suited to anyone who does not already own the parent Lennox cabinet.

8. Fantech RHF16 Replacement HEPA Filter — Best Long-Life Filter

The Fantech RHF16 is the OEM replacement HEPA cartridge for the Fantech DM3000P, CM3000, and CM3000i whole-house filtration systems. Like the Lennox 92X10, it is the only cartridge guaranteed to maintain the true HEPA capture rate the parent system was designed for.

The 2 to 5 year service life is the longest in our roundup. In typical suburban conditions you can plan on changing this cartridge once every 3 years, which keeps the long-term cost of ownership reasonable despite the premium filter price.

The 4.3 star rating across 9 reviews reflects the strong OEM fit and reliable capture. Owners of Fantech whole-house systems specifically note that aftermarket cartridges did not maintain the seal and dropped capture performance.

Why OEM matters here

The RHF16 uses a gel-seal frame that is matched to the Fantech cabinet. Aftermarket cartridges do not always seat correctly, which lets unfiltered air bypass the HEPA media. If you already own a Fantech system, this is the right replacement.

Who it suits best

Owners of Fantech DM3000P, CM3000, and CM3000i whole-house systems needing a long-life OEM replacement. Less suited to other HVAC configurations.

Buying Guide: Choosing the Right Duct-Mounted HEPA Bypass Filter

The best duct-mounted HEPA bypass filter for your furnace depends on three things: how much air your blower moves, what contaminants you are filtering, and how much maintenance you are willing to do. The buying guide below covers each decision factor in order.

Sizing a Bypass HEPA to Your Furnace

Your furnace’s CFM rating is the starting point. Measure it by looking at the data plate on the air handler, or by multiplying your home’s heated square footage by the air changes per hour your system delivers (typically 4 to 6). A 2,000 square foot home with a 5 ACH furnace needs roughly 1,700 CFM total system airflow. The bypass unit only needs to handle 10 to 30 percent of that, which puts most bypass HEPA cabinets in the 200 to 600 CFM range.

If you undersize the bypass, you will not get full-room air cleaning between furnace cycles. If you oversize it, you pay more than you need to. Match the bypass CFM to about 20 percent of your total system airflow as a starting point.

Static Pressure and Blower Strain

This is the single biggest reason to choose a true bypass HEPA over a drop-in HEPA filter. Static pressure is the resistance the furnace blower has to push against. A MERV 13 filter creates about 0.3 inches of pressure drop, which most residential blowers handle without complaint. A true HEPA filter creates 0.5 to 1.0 inches of pressure drop, which can overheat the heat exchanger, trip the high-limit switch, and shorten blower motor life.

A bypass HEPA cabinet has its own dedicated fan, so the furnace blower never sees the HEPA’s pressure drop. That is the engineering reason these units cost more than drop-in filters, and it is the reason HVAC professionals recommend them over creative DIY HEPA swaps.

Maintenance and Replacement Schedule

Pre-filters on bypass HEPA units typically need replacement every 6 to 12 months. Carbon stages last 12 months. The HEPA cartridge itself lasts 2 to 5 years depending on pollutant loading. Plan filter costs into your annual budget rather than treating the purchase as a one-time expense.

The Aprilaire 1410 and 1310 are the easiest to maintain because the replacement media is inexpensive and the cabinet is simple. The Lennox and Fantech OEM cartridges cost more but last longer. Honeywell’s F300E has washable cells, which is the lowest-friction maintenance option in our roundup.

DIY vs Professional Installation Cost

Inline cartridge units like the GrowBright 6-Inch CleanFlow and the Fantech FB 6 install with basic hand tools and a sheet metal adapter if needed. A confident DIYer can complete the install in under two hours.

Bypass cabinets like the Lennox Healthy Climate and the Aprilaire 2310 require cutting into the return plenum, installing sheet metal transitions, wiring a dedicated outlet for the bypass fan, and sealing every joint with mastic or foil tape. Plan on a professional HVAC install for these units. Professional installation typically adds significantly to the project cost, and is recommended for anyone not comfortable with sheet metal work.

Filter-only replacements like the Lennox 92X10 and Fantech RHF16 require no install at all. Open the cabinet door, swap the cartridge, close the door.

Frequently Asked Questions

Final Verdict: The Best Duct-Mounted HEPA Bypass Filter for Your Furnace

For most homeowners, the GrowBright 6-Inch CleanFlow HEPA Filter is the best duct-mounted HEPA bypass filter for a furnace because it delivers true HEPA capture, fits standard 6 inch ductwork, and carries the strongest customer satisfaction in the roundup. Pair it with an inline fan on a return loop, and you get bypass HEPA performance without the cost of a full cabinet system.

If you need whole-home coverage for a larger house, the Honeywell F300E is the proven workhorse. For a budget-friendly upgrade that still makes a real difference for allergies, the Aprilaire 1410 is the right pick. Match the unit to your ductwork, your CFM requirement, and your maintenance tolerance, and you will breathe easier.
