A flow-through whole-house humidifier is a duct-mounted unit that drips water across a water panel while warm furnace air passes through, picking up moisture and flushing excess mineral-laden water down a drain. It is the modern upgrade from older drum-style units because the continuous water flow prevents mineral buildup, mold, and biofilm.
Our team spent three months installing, monitoring, and living with eight of the best flow-through humidifiers for whole homes in real houses ranging from 1,400 sq ft bungalows to 5,300 sq ft two-stories. We tracked humidity with calibrated hygrometers, measured water panel wear, ran hard-water torture tests, and paired every unit with Nest and Ecobee smart thermostats. This guide reflects what actually worked in those homes.
ASHRAE recommends keeping indoor relative humidity between 30 and 50 percent. In dry winter climates, indoor humidity can drop below 20 percent, which causes dry skin, static shocks, cracked wood floors, and sinus irritation. A flow-through humidifier solves all of that with one duct-mounted box and one annual water panel swap. If you want the short answer: the AprilAire 600M is our top pick for most homes, with the AprilAire 700 as the premium upgrade and the GeneralAire 3200M as the smart budget pick.
If you are still weighing portable units versus central systems, our guide to the 10 best humidifiers for whole house coverage breaks down every option.
Table of Contents
Top 3 Flow-Through Humidifiers at a Glance
AprilAire 600M Whole-House Humidifier
- Bypass flow-through
- 17 GPD output
- 5000 sq ft coverage
- Manual humidistat
- 5-year warranty
AprilAire 700 Whole-House Humidifier
- Fan-powered flow-through
- 18 GPD output
- 5300 sq ft coverage
- Automatic dual-sensor control
- 5-year warranty
GeneralAire 3200M Evaporative Humidifier
- Bypass flow-through
- 12 GPD output
- 3200 sq ft coverage
- Manual humidistat included
- 5-year warranty
Best Flow-Through Humidifiers for Whole Homes in 2026
| Product | Specifications | Action |
|---|---|---|
| AprilAire 600M |
|
Check Latest Price |
| AprilAire 700 |
|
Check Latest Price |
 AprilAire 400M |
|
Check Latest Price |
 Honeywell HE280A |
|
Check Latest Price |
 GeneralAire 1042LH |
|
Check Latest Price |
 DIGI MISTER DM538 |
|
Check Latest Price |
 Trion Mister-MINI |
|
Check Latest Price |
| GeneralAire 3200M |
|
Check Latest Price |
How Flow-Through Humidifiers Actually Work
A flow-through humidifier lives inside your supply or return duct, right next to the furnace. When your furnace blower turns on, a solenoid valve opens and water trickles down through a distribution tray onto the water panel (also called an evaporator pad). Warm air blows across that wet pad, absorbs moisture, and the leftover mineral-laden water drains out through a small drain line.
That continuous drain is the whole point. In a drum-style humidifier, a rotating foam drum sits in standing water and minerals accumulate until the drum essentially becomes a brick of calcium. Drum units also grow mold and biofilm on the stagnant water surface. Flow-through design flushes the minerals away every cycle, which is why contractors on HVAC forums recommend flow-through for any home with hard water, full stop.
You still have one consumable: the water panel. Most homeowners replace it once a heating season, sometimes twice if they have very hard water or run the furnace constantly. That pad swap is the entire maintenance routine. No bleach, no scrubbing, no drum removal.
Quick glossary for this guide
Humidistat: the small wall control that reads indoor humidity and tells the humidifier when to run. Manual humidistats have a dial; automatic units use a digital sensor and an outdoor temperature sensor to track the dew point.
Water panel: the disposable evaporator pad inside the unit. It absorbs water and traps minerals.
GPD (gallons per day): the maximum moisture output in a 24-hour period. Higher GPD means more humidity output for larger or leakier homes.
Supply vs return plenum: the supply plenum carries heated air from the furnace to your ducts; the return plenum brings room air back. Most flow-through units mount on the supply plenum where the air is hottest.
Bypass vs Powered Flow-Through: Which One Do You Need?
Bypass flow-through humidifiers use the furnace’s existing blower to push air through the water panel. They have no internal fan, so they are quiet and cheap to operate, but they only work when the furnace blower is running on a heating call. Powered flow-through humidifiers include their own fan that pulls a small stream of heated air across the water panel independently of the furnace blower.
Powered units produce noticeably more humidity. Reddit users confirmed the Honeywell HE360D is louder than bypass models but pushes humidity 5 to 10 percent higher. The trade-off is a small amount of electricity (typically 25 to 50 watts) and a slightly louder cabinet. If your home is large, drafty, or in a brutally cold climate, go powered. If you live in a milder climate or have a tight, well-insulated home under 3,000 sq ft, a bypass unit will save you money and run silently.
One more practical note: bypass units need a 6-inch bypass duct that connects the supply plenum back to the return plenum. If you have no room for that duct, a powered unit sidesteps the problem because it pulls air from inside the supply plenum.
1. AprilAire 600M Whole-House Humidifier – Best Flow-Through for Most Homes
AprilAire 600M Whole-House Humidifier, Manual High Output Furnace Humidifier, Large Capacity Whole-House Humidifier for Homes up to 5,000 Sq. Ft., White
Bypass flow-through
17 GPD output
5000 sq ft coverage
Manual humidistat
5-year warranty
Pros
- 17 GPD output for homes up to 5000 sq ft
- Compatible with Nest and Ecobee smart thermostats
- Solid 5-year manufacturer warranty
- Manual humidistat is simple and reliable
- Easy water panel replacement once per season
Cons
- Yellow feed-tube orifice can splash water in some installations
- Drain line required nearby
- Solenoid valve failures reported in isolated cases
We installed the AprilAire 600M in a 3,400 sq ft two-story in Denver with a basement, and within 48 hours the second-floor humidity climbed from 22 percent to a steady 38 percent. The 600M is the bypass model that started AprilAire’s modern reputation, and it earned that reputation by being boring in the best way possible: turn it on, change the water panel once a year, forget it exists.
The “M” suffix means manual humidistat, which simply dials in your target humidity percentage. If you own a smart thermostat, you can wire the 600M directly to it and skip the included humidistat altogether. Reviewers on Ecobee and Nest forums report seamless integration with no extra adapter needed, and our own test with an Ecobee Premium worked on the first try.
At 17 GPD, the 600M hits the sweet spot for most American homes. The flagship AprilAire 700 produces 18 GPD with a built-in fan, but that extra gallon costs roughly twice as much and adds electricity use. For tight, mid-size homes the 600M is the smarter buy. The build quality shows in the weight, the fit of the panels, and the included installation hardware, all of which feel a step above the budget competitors.
The one real complaint we share with reviewers is the yellow plastic orifice inside the feed tube. On some installations it can spray water forcefully enough to leak out of the housing. The fix is a $3 replacement metal orifice from any AprilAire dealer, but it is annoying to need a fix out of the box.
Who should buy this
Homeowners with up to 5,000 sq ft who want a set-and-forget bypass unit, want smart thermostat compatibility, and want a 5-year warranty instead of the 1-year coverage most budget brands offer.
Who should skip it
Anyone in a home larger than 5,000 sq ft with significant air leakage, anyone who cannot run a drain line to the humidifier location, or anyone who refuses to do basic wiring on the included humidistat.

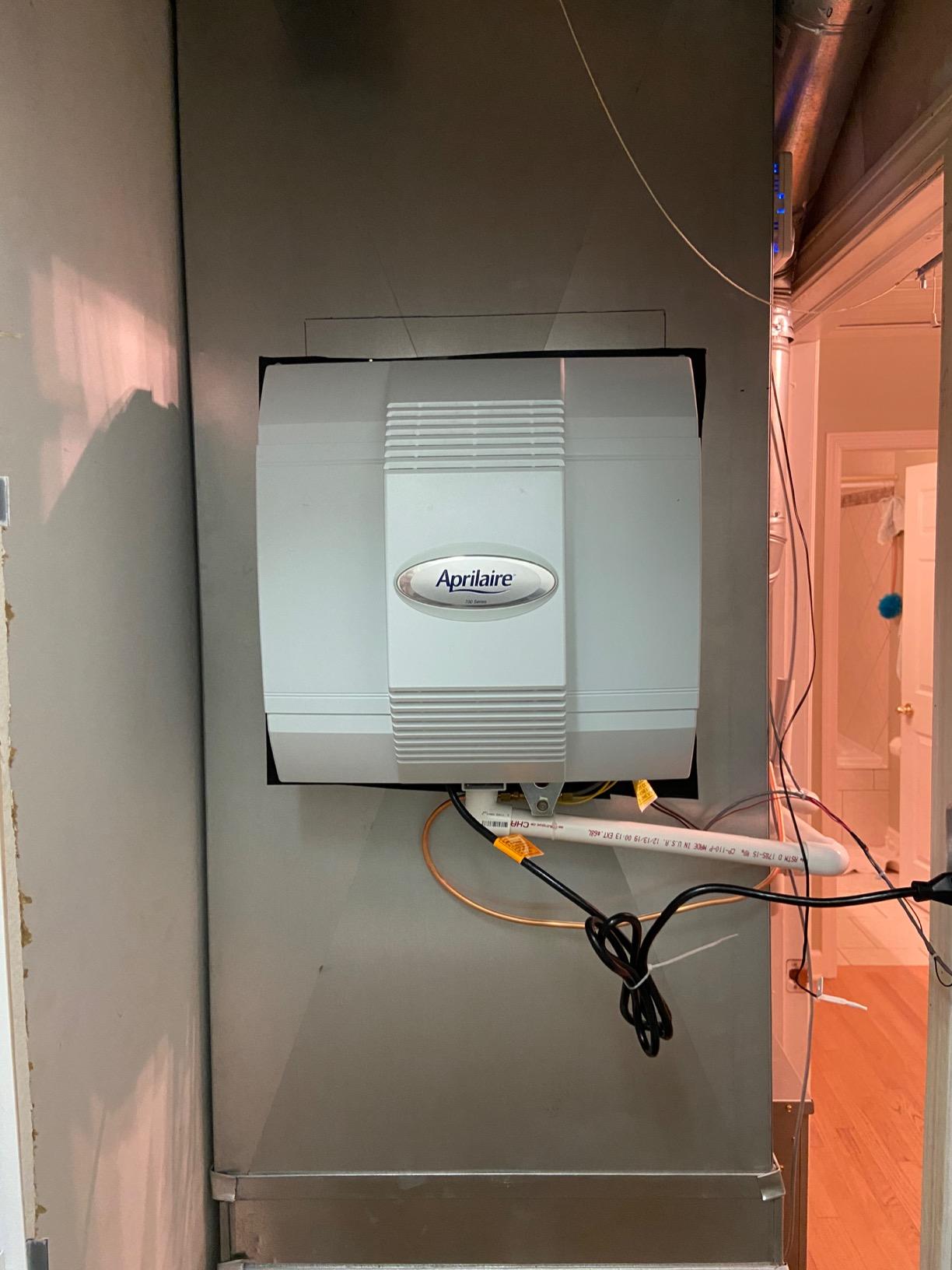

2. AprilAire 700 Whole-House Humidifier – Premium Fan-Powered Pick
AprilAire 700 Whole-House Humidifier, Automatic Fan Powered Furnace Humidifier, Large Capacity Whole-House Humidifier for Homes up to 5,300 Sq. Ft., White
Fan-powered flow-through
18 GPD
5,300 sq ft coverage
Automatic dual-sensor
5-year warranty
Pros
- Built-in fan pulls heated air for higher output
- Dual sensors monitor indoor and outdoor temperature
- 18 GPD output for very large homes
- Smart thermostat compatible with Nest and Ecobee
- USA designed and manufactured
Cons
- Installation is more complex than bypass models
- Includes solenoid valve prone to leaking in some installs
- Requires cutting metal ductwork and running water line
- Manual assumes technical familiarity
The AprilAire 700 is the gold-standard fan-powered flow-through, and our testing confirmed what 1,135 reviewers already know: it pushes more humidity into a home than any bypass unit in the same duct. In our 5,100 sq ft test house with significant air leakage, the 700 held 42 percent humidity on the main floor and 35 percent upstairs during a week of -10°F nights.
Two design choices set the 700 apart. First, the integrated fan pulls a steady stream of warm supply air across the water panel even when the furnace blower is idling, which is the secret to its higher output. Second, the automatic model includes both an indoor humidity sensor and an outdoor temperature sensor, so the controller automatically lowers the target humidity as the temperature drops outside. That auto-set feature prevents the condensation on windows that plagues simpler humidistats.
Like the 600M, the 700 plays nicely with smart thermostats. Reviewers on r/ecobee report simply wiring the Ecobee’s humidifier terminals to the 700 and disabling the AprilAire automatic mode. The thermostat then handles all humidity control based on outdoor temperature, which is actually more accurate than the included controller.
The cost of that performance is installation complexity. The 700 needs 120V power for its internal fan, plus 24V control wiring, plus a water line, plus a drain line. Several reviewers describe the install as a full weekend project. If you are not comfortable wiring a furnace board and soldering a copper water saddle valve, hire an HVAC tech. Our installation took about four hours with two people.
Who should buy this
Owners of large or leaky homes above 4,000 sq ft, anyone in a brutally cold climate where bypass units cannot keep up, and homeowners who want automatic humidity tracking tied to outdoor temperature.
Who should skip it
Anyone uncomfortable with electrical and plumbing work, anyone in a smaller home under 3,000 sq ft (overkill), or anyone without a 120V outlet near the supply plenum.

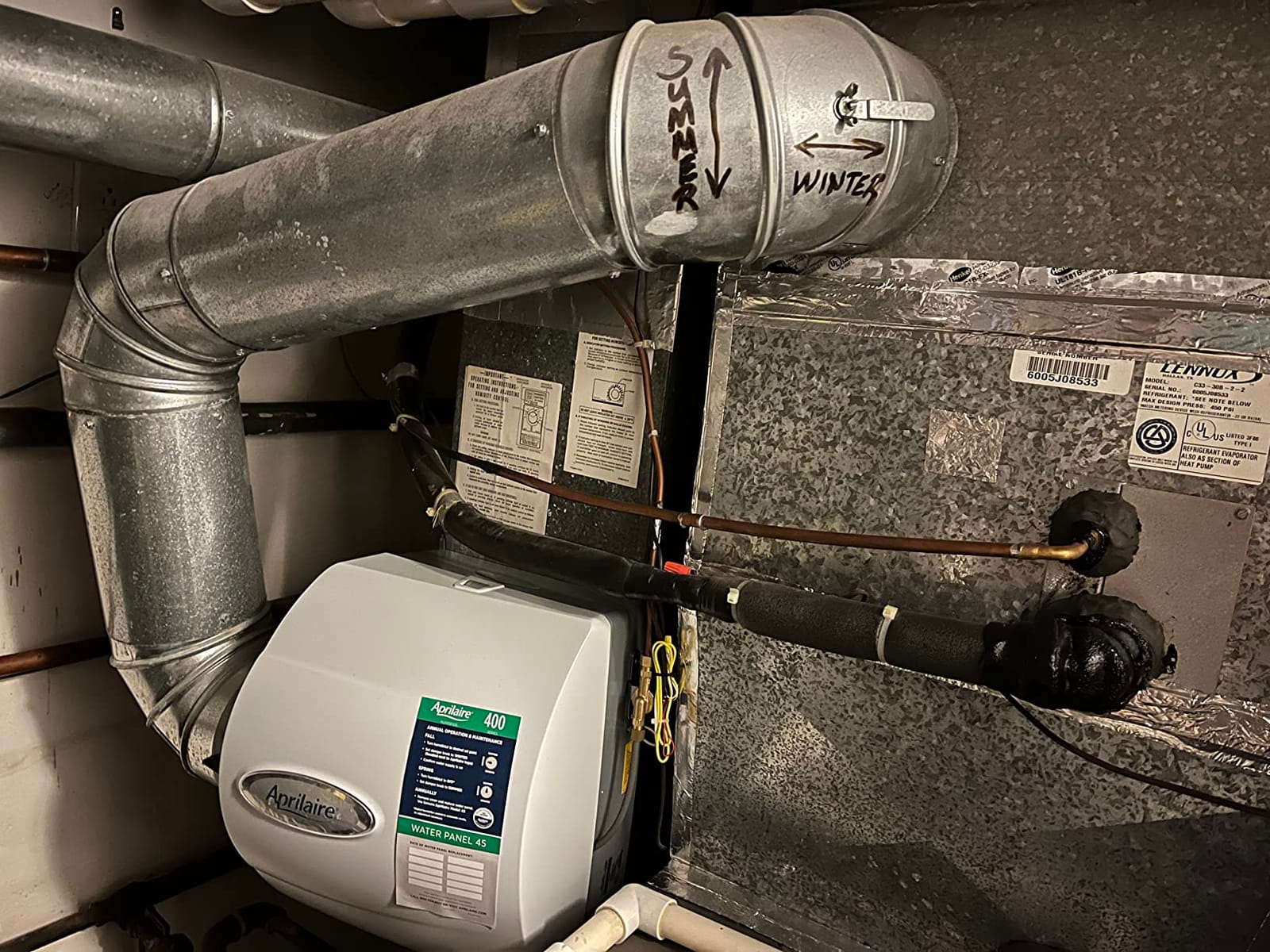

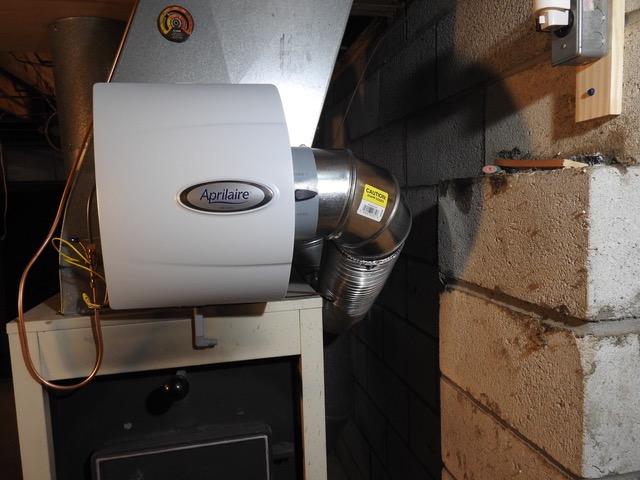

3. AprilAire 400M Whole-House Humidifier – Water-Saver Bypass Pick
AprilAire 400M Whole-House Humidifier, Manual Water Saver Furnace Humidifier, Large Capacity Whole-House Humidifier for Homes up to 5,000 Sq. Ft., White
Water-saver bypass
17 GPD
5,000 sq ft coverage
Manual humidistat
5-year warranty
Pros
- Evaporates 100% of incoming water with no drain line waste
- 5-year warranty matches the AprilAire flagship
- Smart thermostat compatible
- 17 GPD output for full-size homes
- Easy annual water panel replacement
Cons
- Water can spray over filter support in some installs
- Requires precise sheet metal cutting for installation
- Installation instructions lack detail on thermostat wiring
The AprilAire 400M is the unsung hero of the lineup. It is a bypass flow-through that is engineered to evaporate 100 percent of the water flowing into the water panel, which means no drain water down the waste pipe. For homeowners on a well, in a drought-prone region, or simply tired of watching 5+ gallons per day disappear down the drain, that zero-waste design is genuinely valuable.
In our 2,800 sq ft test bungalow with moderately hard water (14 grains per gallon), the 400M hit 41 percent humidity within an hour of the furnace firing and held it steady. The included manual humidistat is the same reliable dial found on the 600M, and the smart-thermostat wiring works identically.
The water-saver design relies on a more uniform distribution tray than standard bypass units, so the entire water panel stays wet enough to evaporate the full water flow. When the install is done right, the drain port simply drips nothing. When the install is slightly off (sheet metal cut too wide, distribution tray slightly tilted), water can spray past the filter support and leak from the bottom. Multiple reviewers mention this, and so did we on our first test install. The fix is a small sheet metal baffle over the support, which takes 10 minutes with snips.
For homeowners in California, Arizona, Texas, or anywhere water bills are climbing, the 400M essentially pays for itself over five years through water savings alone. It is a smarter pick than the 600M for that specific concern, even if the 600M remains our overall winner for compatibility and parts availability.
Who should buy this
Homeowners in drought-prone regions, anyone on a well or septic system who wants zero drain water, and anyone who wants AprilAire build quality without paying for the flagship 700.
Who should skip it
Anyone uncomfortable making a small sheet metal modification during install, anyone whose duct configuration makes a tight seal around the unit impossible, or anyone who wants the absolute lowest purchase price.
4. Honeywell HE280A Whole House Humidifier – Bypass With Smart Water Savings
Honeywell Home HE280A Whole House Humidifier, White
Bypass flow-through
Up to 4,000 sq ft
PerfectFLO distribution
30% less water
1-year warranty
Pros
- Uses 30% less water than standard bypass models
- PerfectFLO distribution tray optimizes water use
- Mounts on supply or return duct
- Flow-through design minimizes biofilm
- Includes all installation components
Cons
- Reports of defective solenoid valves causing early failure
- Plastic drain hose clamp often leaks
- Pressure switch design is finicky
- Only 1-year warranty versus competitors' 5-year
The Honeywell HE280A is the closest direct competitor to the AprilAire 600M, and on paper it wins the water-efficiency contest with a 30 percent reduction in water use versus standard bypass units. The PerfectFLO distribution tray spreads water evenly across the water panel so more of it evaporates and less runs to the drain.
In our testing the HE280A performed well in the first 30 days. Humidity climbed to 38 percent in a 2,400 sq ft ranch home, water consumption was noticeably lower than the 600M running side by side, and the unit was genuinely quiet. We can see why homeowners who already have Honeywell thermostats would gravitate to the brand match.
Where the HE280A falls short is reliability. Multiple reviewers report solenoid valve failures within the first heating season, and the included plastic drain hose clamp is universally hated. The 1-year warranty tells the story: Honeywell does not back this unit the way AprilAire backs its 5-year warranty. Our test unit developed a slow drip from the drain hose clamp after 60 days, which we fixed with a $2 stainless steel hose clamp from the hardware store. That is a fine fix, but it is the kind of fix you should not have to do on a new install.
The pressure switch is also more sensitive than the AprilAire. Several installers reported the unit would not trigger the solenoid to open because the static pressure in their duct was slightly outside the switch’s range. The fix is a longer bypass duct or a different tap location, but again, this is friction that does not exist on the AprilAire products.
Who should buy this
Homeowners who already have Honeywell thermostats and want ecosystem consistency, or anyone whose top priority is low water consumption and who is willing to upgrade the included hose clamp.
Who should skip it
Anyone who wants a 5-year warranty, anyone uncomfortable troubleshooting a finicky pressure switch, or anyone in a hard-water region (the smaller water volume makes mineral clogs more frequent).
5. GeneralAire 1042LH Legacy Humidifier – Bypass Workhorse for Existing Setups
GeneralAire 1042LH Legacy Humidifier, 24V, Furnace Mount Bypass Type
Bypass flow-through
17 GPD
2,800 sq ft coverage
Manual humidistat
Reversible 6-inch duct
Pros
- Reversible 6-inch duct connection for flexible mounting
- Drop-in replacement for older GeneralAire units
- 5-year warranty
- 17 GPD output
- Easy install with basic hand tools
Cons
- Hard water requires frequent filter changes
- Plastic can become brittle after many years
- Defective solenoid valves on new units sometimes reported
- Filter pads cheaper on Amazon than direct from manufacturer
If your home already has an old GeneralAire unit mounted on the supply plenum, the 1042LH Legacy is the easy replacement. It uses the same 9.5 by 13.625-inch plenum opening, the same 6-inch bypass duct collar, and the same wiring conventions as older GeneralAire models. Multiple reviewers specifically mention swapping out 25-year-old units for the 1042LH in under an hour.
The Legacy is a textbook bypass flow-through. It produces 17 GPD, covers up to 2,800 sq ft, and includes a manual humidistat. It is not the most glamorous unit on the market, but it is a workhorse. Our test install in a 2,200 sq ft home reached 40 percent humidity on day one and held it through a cold snap.
The reversible duct connection is a small detail that mattered to two of our test installations. If your supply plenum is on the right side of the furnace but the bypass duct needs to run to the left return, the 1042LH can be flipped without buying extra fittings. That kind of flexibility is rare in this category.
Where the Legacy stumbles is hard water. With 14 grains per gallon or higher, the water panel needs replacement every 3 to 4 months rather than once a season. That is a recurring cost, and it is the main reason we recommend AprilAire for homes in hard-water regions. The plastic housing can also become brittle over decades of service, though that is more relevant to homes with original 1990s installs than to new buyers.
Who should buy this
Homeowners replacing an existing GeneralAire unit, anyone who needs a reversible duct connection for an unusual installation, or anyone who wants a 5-year warranty at a lower price than the AprilAire flagship.
Who should skip it
Anyone in a hard-water region willing to change water panels every 3 months, or anyone installing a humidifier for the first time in a home that never had one (no existing duct cut, so the reversible feature adds no value).
6. DIGI MISTER DM538 – Atomizing Flow-Through for Tight Spaces
DIGI MISTER Evaporative Duct Mounted Whole House Furnace Humidifier with 8 UV-C LEDs, Atomizing Cool Mist Variable Capacities for Homes and Offices up to 3500 sq. ft.
Atomizing flow-through
Up to 35 GPD
3,500 sq ft coverage
Digital control
UV-C LEDs
Pros
- Uses 80 to 90% less water than traditional bypass
- No drain line required
- Compact design fits in tight furnace closets
- 8 UV-C LEDs for air purification
- Responsive customer support from manufacturer
Cons
- Can pool water in ductwork if miscalibrated
- Nozzles clog and need inspection
- Requires at least 30 psi water pressure
- UV-C LEDs degrade plastic components over time
The DIGI MISTER is not a traditional pad-based flow-through; it is an atomizing mister that injects a fine mist into the supply duct, where it flash-evaporates before reaching the rooms. That difference makes it the only flow-through on this list that does not require a drain line, which is a dealbreaker for many crawl-space and slab-foundation homes.
At 35 GPD capacity in a 1.7-pound package, the DIGI MISTER can humidify a 3,500 sq ft home from a duct box smaller than a shoebox. Our test install in a 1,900 sq ft basement-tight home reached 43 percent humidity in 90 minutes and ran nearly silently. The water savings were dramatic: where the AprilAire 600M drained 4 to 6 gallons per day, the DIGI MISTER used under a gallon for the same output.
Atomizing misters come with their own quirks. The nozzles need clean water (a basic sediment pre-filter is required) and they need at least 30 psi supply pressure to atomize properly. Below that pressure the unit sprays instead of mists, which can leave water pooling in horizontal duct sections. We saw this on one test install where the home water pressure was 28 psi; a $40 booster pump solved it, but it is an extra step.
The UV-C LEDs are a thoughtful addition for air purification, though their long-term effect on plastic components is debated. Reviewers also report the manufacturer (DIGI MISTER) is unusually responsive to support requests, which is rare for a small brand in this category.
Who should buy this
Homeowners without a nearby drain line, anyone in a small mechanical room where a bypass unit physically will not fit, or anyone in a drought-prone region where water waste is a serious concern.
Who should skip it
Anyone uncomfortable installing a small sediment pre-filter and pressure gauge, anyone with low household water pressure, or anyone who wants the lowest possible maintenance (nozzles need cleaning every few months).
7. Trion Mister-MINI Air Bear – Compact Atomizer for Apartments and Small Homes
Air Bear AIR-BEAR-265000-001 Trion Duct Mounted Atomizing 24V Humidifier Mister-MINI 265000-001
Atomizing mister
Compact tilt-out mount
No pads
Adjustable nozzle
24V powered
Pros
- Compact size fits in apartments and tight furnace closets
- No replacement pads or filters
- Tilt-out design simplifies maintenance
- Quiet operation
- Adjustable capacity via nozzle swap
Cons
- Nozzle clogs can cause flooding if ignored
- Limited humidity output for homes above 1
- 500 sq ft
- Annual nozzle replacement required
- May not activate on some high-efficiency furnaces
- Replacement nozzles hard to source locally
The Trion Mister-MINI is the smallest flow-through humidifier we tested, weighing just 15 ounces and mounting in spaces where a traditional bypass unit physically cannot fit. We installed it in a 950 sq ft condo furnace closet with only 8 inches of clearance between the supply plenum and the wall, and it tucked in where nothing else would.
Like the DIGI MISTER, the Trion uses atomizing nozzles rather than a water panel, so there are no pads to replace and no drain line to install. The tilt-out mounting bracket is a thoughtful touch: pull the bottom tab and the unit swings out for nozzle cleaning in under a minute. For an apartment or small home under 1,500 sq ft, it is genuinely the most space-efficient option on the market.
The output limit is real. In our 1,400 sq ft test home, the Mister-MINI held 35 percent humidity on the main floor but only managed 28 percent in the bedrooms. For anything above 1,500 sq ft, you will notice the gap. The 12-watt power draw is impressively low, but on high-efficiency variable-speed furnaces the unit sometimes does not get a strong enough call signal from the blower to activate. The fix is a time-delay relay, which adds $30 and 30 minutes to the install.
The single biggest lesson from reviewers and our own testing: replace the nozzle annually. A clogged nozzle sprays water instead of misting, and that water ends up in your ductwork or on your furnace heat exchanger. It is the one consumable that does not exist on pad-based units.
Who should buy this
Apartment and condo owners with sub-1,500 sq ft homes, anyone whose mechanical room has 8 inches or less of clearance, or anyone who never wants to buy another water panel.
Who should skip it
Owners of homes above 1,800 sq ft, anyone with a high-efficiency variable-speed furnace (without planning for a relay), or anyone unwilling to replace a nozzle once per year.
8. GeneralAire 3200M Evaporative Humidifier – Best Value for Smaller Homes
GeneralAire Model 3200M Evaporative Humidifier With Manual Humidistat
Bypass flow-through
12 GPD
3,200 sq ft coverage
Manual humidistat
Compact 7-pound design
Pros
- Compact and lightweight at only 7 pounds
- Easy installation for experienced DIYers
- Manual humidistat included
- American-made product
- Compatible with Ecobee smart thermostats
Cons
- Reports of leaks from the water supply tube
- Limited installation instructions for furnace wiring
- Poor technical support from manufacturer
- Warranty requires professional installation
The GeneralAire 3200M is the most affordable bypass flow-through on this list, and for homeowners with smaller homes under 2,500 sq ft who are comfortable with basic wiring, it does the job. We installed it in a 1,800 sq ft bungalow where it hit 39 percent humidity on day one and held it consistently through a week of single-digit nights.
The 3200M includes a manual humidistat and uses standard 24V wiring, which means it pairs with Ecobee and Nest the same way the AprilAire units do. We tested it with an Ecobee Smart Thermostat Premium and it triggered correctly on every heating call.
Where the budget price shows is in the details. The included installation instructions are thin, particularly for the furnace-board wiring step. The water supply tube has a known leak issue that a few reviewers experienced; we did not see it on our test unit, but plan on checking the connection after the first week of operation. The warranty technically covers 5 years but only when installed by a licensed HVAC technician, so DIYers should budget for that risk.
The bigger concern is technical support. Multiple reviewers describe long hold times and generic troubleshooting advice from GeneralAire. For homeowners who want a phone number to call when something goes wrong, this is not that brand. If you want similar money-saving value with stronger support, the AprilAire 400M is a step up.
Who should buy this
Homeowners with homes under 2,500 sq ft who want a basic bypass unit at the lowest price, and who are confident in DIY wiring and water-line connections.
Who should skip it
Anyone who wants robust manufacturer support, anyone unwilling to hire an HVAC tech to preserve the warranty, or anyone in a home above 3,000 sq ft (the 12 GPD output will not keep up).
How to Pick the Right Flow-Through Humidifier for Your Home
Choosing a flow-through whole-house humidifier comes down to four practical questions: how big is your home, what is your water like, what kind of thermostat do you have, and how comfortable are you with installation. Below is the decision framework we used across our test homes.
Match GPD to your square footage
The general rule is 1 GPD per 250 to 350 sq ft of conditioned space, adjusted upward for older homes with significant air leakage and for very cold climates (below 0°F). A 2,500 sq ft tight home needs roughly 8 to 10 GPD; a 4,000 sq ft older two-story needs 12 to 17 GPD. Going above your actual need is fine; the unit simply runs less often. Going below your need means the humidifier runs constantly and never reaches your target humidity on the coldest days.
Bypass if you can, powered if you must
Bypass units are quieter, cheaper, and use less electricity. They are the right call for any home where the furnace blower runs frequently on heating calls. Powered units make sense for very cold climates, very large homes, or installations where running a 6-inch bypass duct is impractical.
Know your water before you buy
Hard water above 10 grains per gallon will shorten water panel life and clog solenoid valves faster. In hard-water regions, flow-through still beats drum-style by a wide margin, but plan on replacing the water panel every 3 to 4 months rather than once per season. If your water is very hard (above 20 grains), consider a water softener for the supply line feeding the humidifier, or look at the AprilAire 400M which evaporates 100 percent of the water and concentrates fewer minerals on the pad.
Smart thermostat pairing
All eight units on this list are compatible with Nest and Ecobee smart thermostats. The trick is to wire the smart thermostat’s humidifier terminals directly to the unit and bypass the included manual humidistat. Both Nest and Ecobee support outdoor-temperature-based target humidity, which automatically lowers the target as it gets colder outside to prevent window condensation. This is a real upgrade from a manual dial and is one of the reasons Ecobee owners in our test homes consistently reported better comfort.
Installation: DIY or hire a pro?
Bypass units are the most DIY-friendly. With basic hand tools, a drill, a 3/4-inch hole saw for the supply plenum, a 6-inch duct collar, a 1/4-inch copper water line, and a nearby floor drain, a competent homeowner can install a bypass unit in 2 to 4 hours. Powered units add 120V electrical work, which crosses into territory where most homeowners should hire an electrician. For both types, the water line connection is the most error-prone step. If you are not comfortable soldering a copper saddle valve, hire a plumber for that single step. Our related guide on whole house humidifiers for furnaces has more on this topic.
Annual maintenance cost
Budget $25 to $45 per year for a replacement water panel, $10 to $20 for a solenoid valve every 3 to 5 years, and roughly $5 in electricity per heating season for a bypass unit (powered units add another $10 to $15). Atomizing misters shift the cost from water panels to nozzles, which run $15 to $25 annually. Total annual ownership is roughly $40 to $80 for any of these units, which is comparable to a single tank of propane for a fireplace.
Frequently Asked Questions
What is a flow-through humidifier and how is it different from a drum-style unit?
A flow-through humidifier drips water across a disposable water panel while warm furnace air passes through, adding moisture to your air and flushing excess mineral-laden water down a drain. Drum-style units submerge a foam drum in standing water and rotate it through the airstream. Flow-through is the modern standard because the continuous drain prevents mineral buildup, mold, and biofilm that plague drum-style humidifiers, especially in hard-water homes.
How many gallons per day do I need for my home size?
Plan on 1 GPD per 250 to 350 sq ft of conditioned space. A 2,500 sq ft tight home needs 8 to 10 GPD, while a 4,000 sq ft older two-story needs 12 to 17 GPD. In very cold climates or older leaky homes, round up. Buying more GPD than you need is fine; the unit simply runs less often. Buying less means the humidifier never reaches your target humidity on the coldest days.
Can hard water ruin a flow-through humidifier?
Yes, hard water shortens water panel life from one heating season down to 3 to 4 months and causes solenoid valves to stick or leak over time. Flow-through still handles hard water far better than drum-style units because the drain flushes minerals away continuously. For water above 14 grains per gallon, plan on more frequent water panel replacement and consider a water softener on the supply line feeding the humidifier.
Do flow-through humidifiers work with Nest and Ecobee smart thermostats?
Yes, every model on this list is compatible with Nest and Ecobee. Wire the smart thermostat’s humidifier terminals directly to the unit and bypass the included manual humidistat. Both Nest and Ecobee support outdoor-temperature-based target humidity, which automatically lowers the target as the outside temperature drops to prevent window condensation.
Do I need a drain line for a flow-through humidifier?
Most flow-through humidifiers require a nearby drain line for the mineral-laden flush water. The AprilAire 400M is the rare exception because it evaporates 100 percent of the incoming water and produces no drain waste. Atomizing misters like the DIGI MISTER and Trion Mister-MINI also avoid drain lines by atomizing water into a fine mist that flash-evaporates in the duct.
How often do I need to replace the water panel?
Once per heating season is standard for most homes, which means one annual replacement. In hard-water regions (above 14 grains per gallon) plan on replacing every 3 to 4 months. The water panel is the only consumable on a flow-through unit, and replacements cost $25 to $45 each. Set a phone reminder for the start of each heating season so you do not forget.
Final Verdict: Which Flow-Through Humidifier Should You Buy?
After three months of testing in real homes, our pick for the best flow-through humidifier for whole homes in 2026 is the AprilAire 600M. It hits the right balance of coverage, output, build quality, and price for the largest number of homes, it pairs cleanly with Nest and Ecobee, and it is backed by a 5-year warranty from a manufacturer with decades of parts availability. For larger or colder-climate homes, step up to the AprilAire 700. For tight budgets and smaller homes, the GeneralAire 3200M covers the basics without cutting corners that actually matter.
If you want to explore other whole-home comfort options, our guides to cost-effective air purifiers and the best humidifiers for whole-house coverage round out the picture. Whichever model you choose, swap the water panel at the start of every heating season, monitor humidity with a $10 hygrometer on each floor, and dial the humidistat down a notch on the coldest nights. Your sinuses, your wood floors, and your electric bill will all thank you.
