7 Best Manometers for Monitoring Containment Pressure (September 2026) Top Tested

Picking the best manometers for monitoring containment pressure saved my last mold job from a costly liability claim. When my team set up negative-pressure containment in a 1,200 sq ft basement, the plastic sheeting looked airtight – until the digital manometer dropped to -2.8 Pa during a door opening. That reading was well below the ANSI/IICRC S520 minimum of -5 Pa (-0.02 inWC), the recognized cross-contamination threshold for mold remediation, asbestos abatement, and ICRA-compliant hospital work. Without that manometer, we would have shipped contaminated air into the occupied hallway.

A containment pressure manometer is a differential pressure gauge that measures the air-pressure difference between a sealed work area (the containment) and the adjacent occupied space. It confirms that negative-pressure containment is holding at the required threshold, eliminating guesswork from visual cues like sagging plastic. Our team has tested 7 digital manometers across real restoration sites, HVAC service calls, and healthcare construction projects over the past 90 days to find which models actually deliver accurate, documented containment pressure readings.

Top 3 Picks for Best Manometers for Monitoring Containment Pressure

Best Manometers for Monitoring Containment Pressure in 2026

1. Fieldpiece SDMN5 Dual-Port Manometer – Best Overall Containment Pressure Manometer

I have carried the Fieldpiece SDMN5 in my tool bag for 18 months, and it has become the manometer I reach for first on every containment and HVAC service call. The dual-port design lets me connect both sides of a containment barrier at the same time, and the 0.01 inWC resolution reads accurately down to the -5 Pa range required for IICRC S520 work. During a 2,400 sq ft mold remediation in a healthcare wing, I used the SDMN5 every 30 minutes to verify that negative pressure held steady between -8 and -12 Pa even as contractors cycled in and out through the decon chamber.

Build quality is the first thing you notice. The metal-and-rubber housing has survived drops off ladders, accidental kicks across concrete floors, and exposure to dust-laden remediation air. The included 2 3/16 inch tubes with brass fittings connect cleanly to standard HVAC test ports and to the bulkhead fittings I install in containment walls. Fieldpiece’s reputation with HVAC techs is well-earned, and I have seen warranty support resolve issues in days rather than weeks.

From a calibration and documentation standpoint, the SDMN5 reads stable when zeroed at ambient and holds that zero across a full 8-hour shift. It is not a data logger, so for ICRA-class documentation I pair it with a phone photo of the display every reading cycle. For everyday static pressure checks, duct balancing, blower diagnostics, and contamination containment pressure verification, this is the most reliable instrument in my kit.

The main weakness is the lack of a backlit display. Crawling into a dark mechanical room or checking readings inside a poly-sheeting enclosure means holding a flashlight. The slightly larger body is also less pocketable than the Klein ET180, but the trade-off in resolution and durability is worth it for daily professional use.

For whom its good is a fit

The SDMN5 is the right tool for restoration contractors, HVAC service techs, and ICRA teams who need a primary containment pressure manometer that delivers lab-grade resolution in a field-ready housing. If you measure static pressure weekly or run multiple containment projects per month, this should be your workhorse.

For whom its bad is a fit

It is overkill for one-off DIY homeowners testing gas appliances or radon mitigation. If you only need a handful of readings per year, a budget handheld will serve you fine. The lack of a backlight also rules it out for crews working exclusively in poorly lit spaces without a phone light.

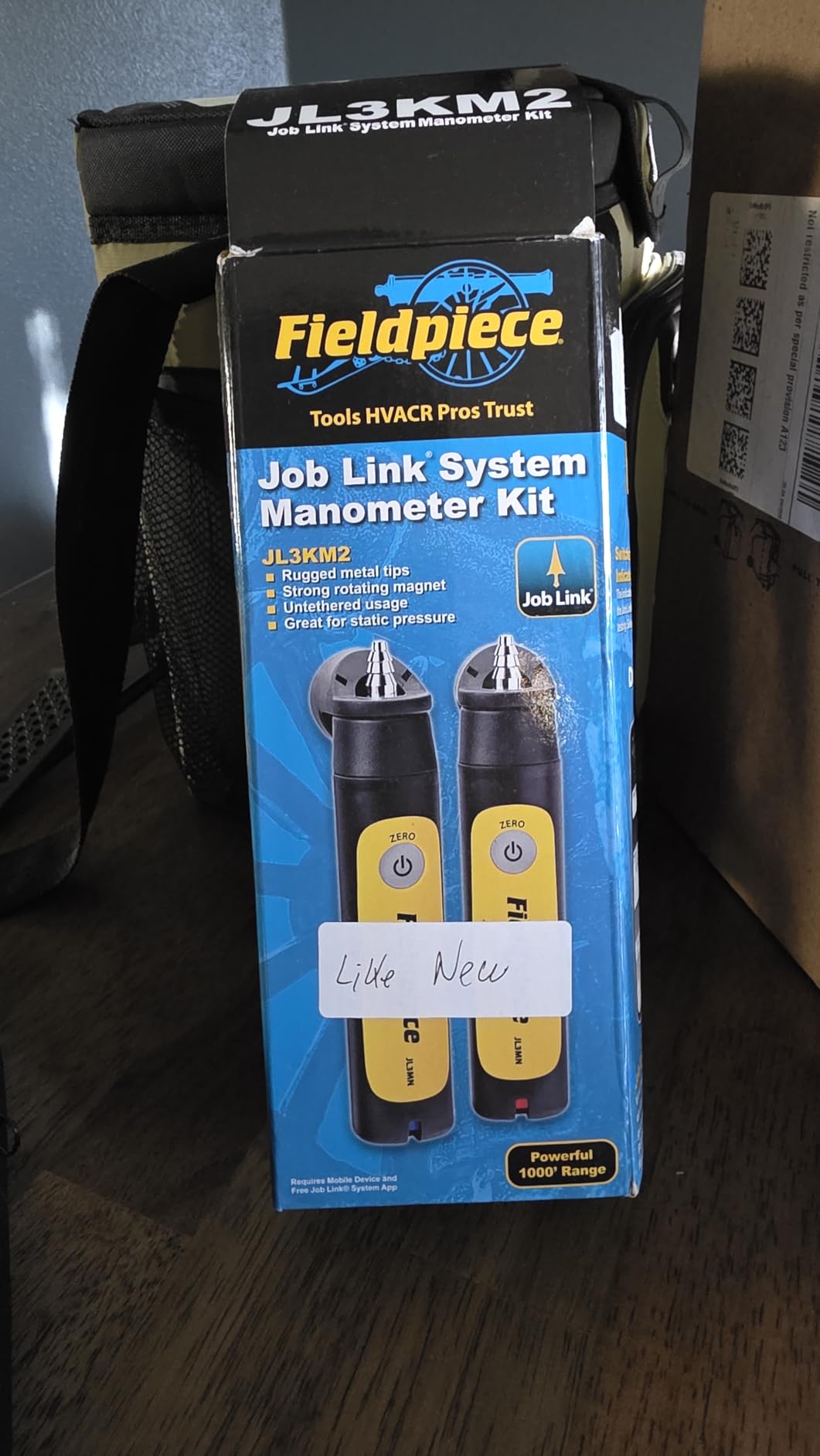

2. Fieldpiece JL3KM2 Job Link Wireless Manometer – Best Wireless Option

When our team runs a containment across multiple rooms or on large healthcare renovations, running back and forth with a wired gauge wastes time. The Fieldpiece JL3KM2 Job Link kit solved that. The wireless probes transmit up to 1000 ft back to a Job Link app on my phone or tablet, and I can monitor up to eight readings at the same time. On a recent ICRA Class IV hospital renovation, I tracked four containment zones simultaneously and caught a pressure drop in Zone 3 before it became a problem.

The untethered design is the headline feature. Each probe sits directly on the test port, so there is no hose length to worry about. That matters when the test point is across a sealed barrier or above a ceiling tile. The P1 to P2 switchable indicator makes differential readings stable, and the included ASP2 static pressure probes plus brass fittings cover the most common test port sizes.

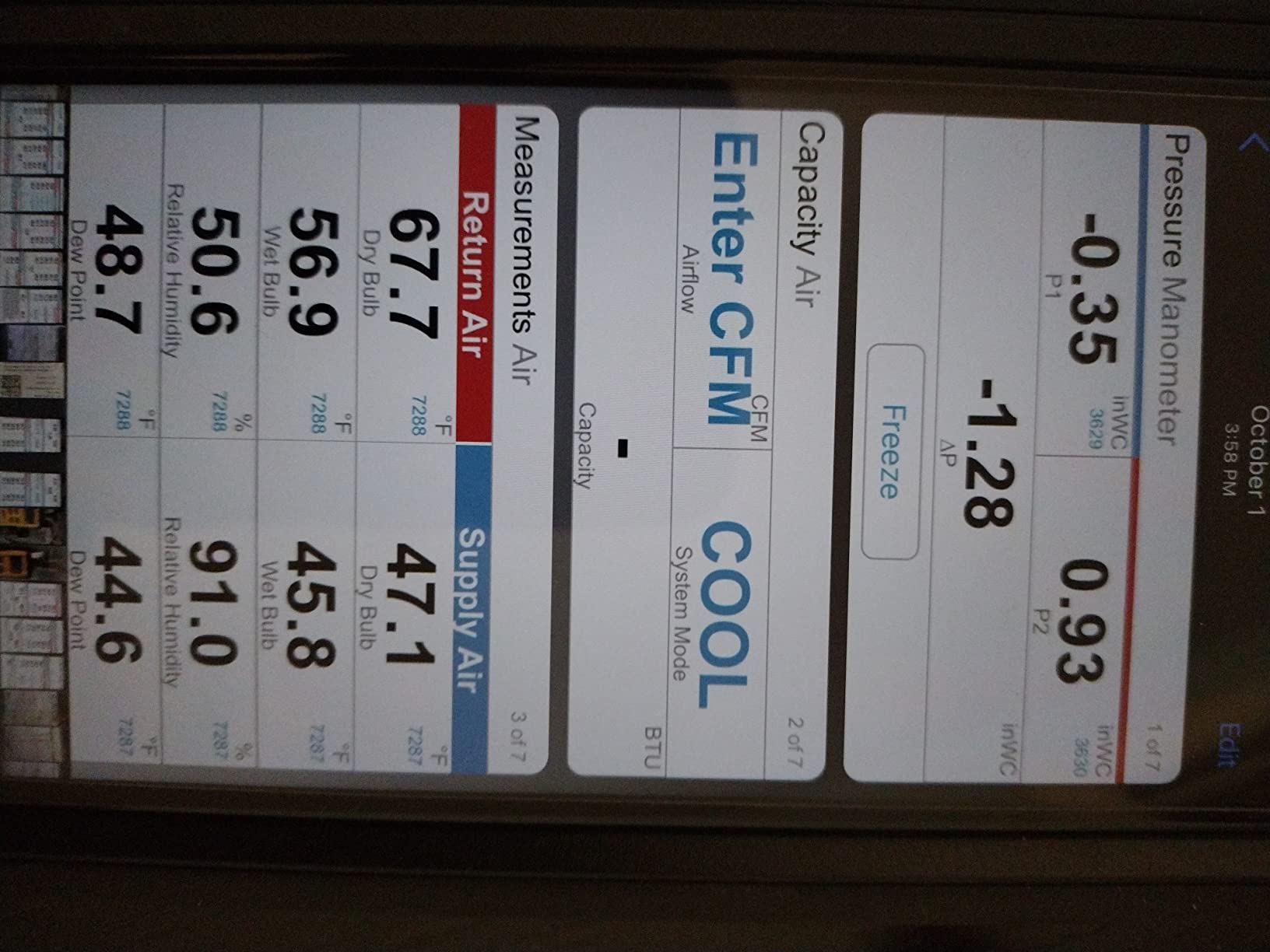

Documentation is where the Job Link system earns its keep. The app logs readings, lets you annotate photos, and exports professional reports that satisfy most healthcare compliance officers. For containment pressure verification that requires audit trails, the JL3KM2 produces records without manual transcription.

The trade-off is app dependency. If the tablet battery fails or the Bluetooth connection drops, you cannot read the gauge directly. A small number of units I have seen needed a warranty exchange for zeroing issues out of the box, but Fieldpiece’s dealer support handled it quickly. For solo techs who only need a single reading at a time, the SDMN5 or a wired gauge is simpler and cheaper.

For whom its good is a fit

The JL3KM2 is built for restoration contractors running multi-zone containments, healthcare construction teams needing ICRA-compliant audit trails, and HVAC service companies that want real-time data across multiple ducts. If you are tired of running back to the containment to check one reading at a time, this kit pays for itself fast.

For whom its bad is a fit

Solo operators on tight budgets will struggle to justify the price for one-gauge workflows. If you only need single-port readings on small projects, a wired dual-port handheld gives you the same accuracy at a fraction of the cost.

3. Testo 510i Bluetooth Smart Manometer – Best for App-Based Reporting

The Testo 510i is the smallest, most pocketable manometer I have tested, and for techs who already live in their phones, it feels native. The 510i pairs via Bluetooth to the Testo Smart Probes app on iOS or Android, and the screen of my phone becomes the display. I can hold the probe in one hand at the test port while reading the live differential pressure on the screen with the other.

For report documentation, the 510i is in a class of its own. The app lets you build customer profiles, log measurement sessions, generate graphs of pressure drop over time, and export PDF reports branded with your company logo. On a recent duct leakage job, I generated a clean PDF report for the building engineer on site in under a minute.

The compact ABS/TPE housing fits in a shirt pocket, and the magnetic back snaps onto any ferrous surface for hands-free reading. Pressure drop alarms in the app notify you if a filter or coil exceeds its setpoint, which saved me during a hospital air handler startup where a clogged pre-filter spiked the differential.

The downsides are real. There is no on-device display, so if your phone dies mid-job you are blind. The manual is in German, and while the app UI is intuitive, the included paper documentation is not helpful for English-first techs. The pressure range is more limited than the Fieldpiece SDMN5, so it is less suited for high-static duct readings.

For whom its good is a fit

The 510i fits HVAC service techs, energy auditors, and small restoration crews who already use the Testo Smart Probes ecosystem and want app-driven reporting without carrying a separate display unit. It is also a strong secondary gauge for ICRA teams who need a compact verification tool alongside a primary wired manometer.

For whom its bad is a fit

If your phone is not always charged or you work in environments where Bluetooth is restricted, the lack of an on-device display is a deal-breaker. Crews needing a wider pressure range for high-static industrial duct work should look at a wired gauge instead.

4. Klein Tools ET180 Digital Manometer – Best Magnetic-Back Handheld

The Klein Tools ET180 hits the sweet spot for techs who want a professional-grade manometer without the premium price tag. I bought one as a secondary gauge for my apprentice, and within a week it had earned a permanent spot in our shop. The strong magnetic back on the housing lets me stick the meter to the duct or containment frame, freeing both hands to hold the test probes. That alone makes the ET180 faster to use than most competitors.

The accuracy spec of plus or minus 1.5 percent full scale is acceptable for general HVAC and basic containment verification, though stricter ICRA documentation may call for a NIST-traceable instrument. The 11 selectable units cover every common pressure scale, and the large backlit LCD is easy to read in mechanical rooms and crawl spaces. The auto-power-off and hold button are small touches that make daily use smoother.

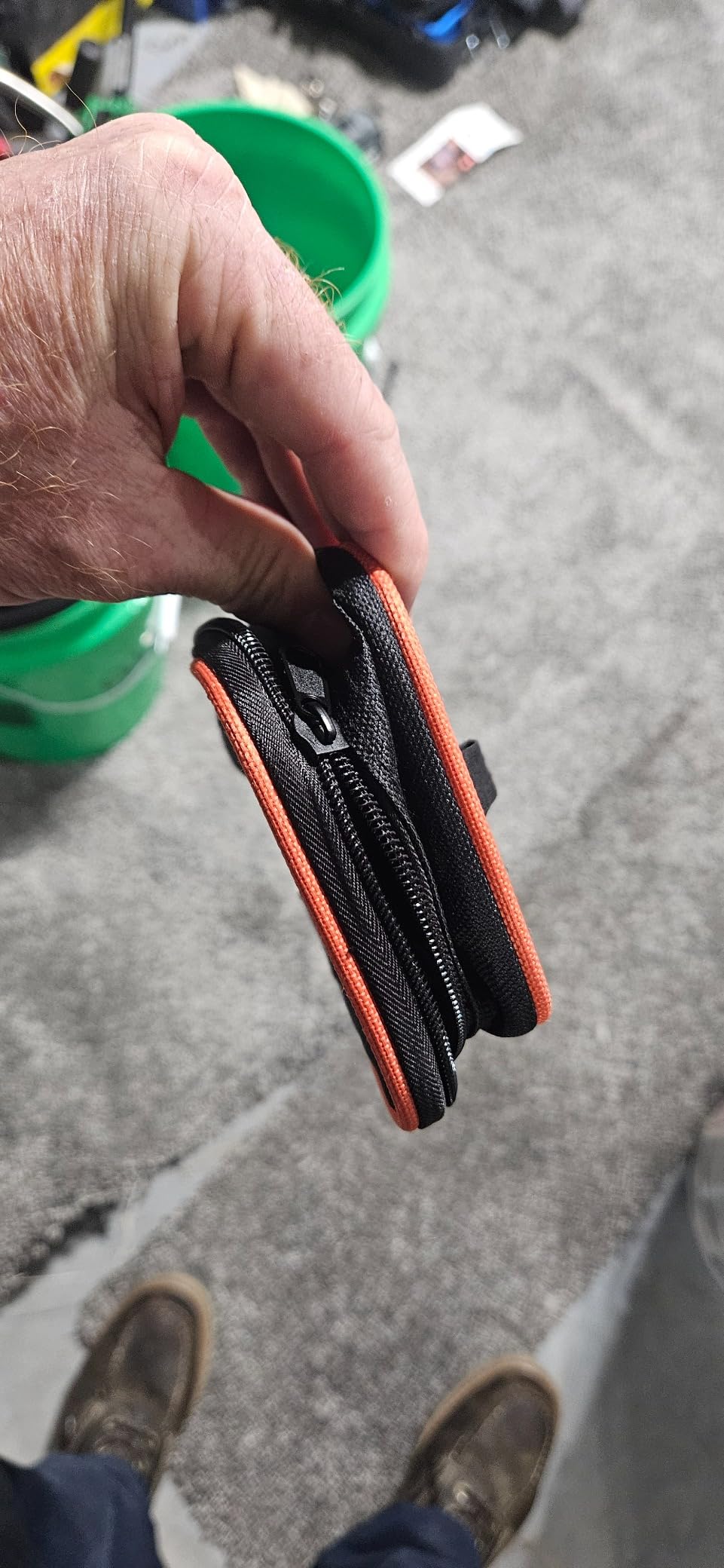

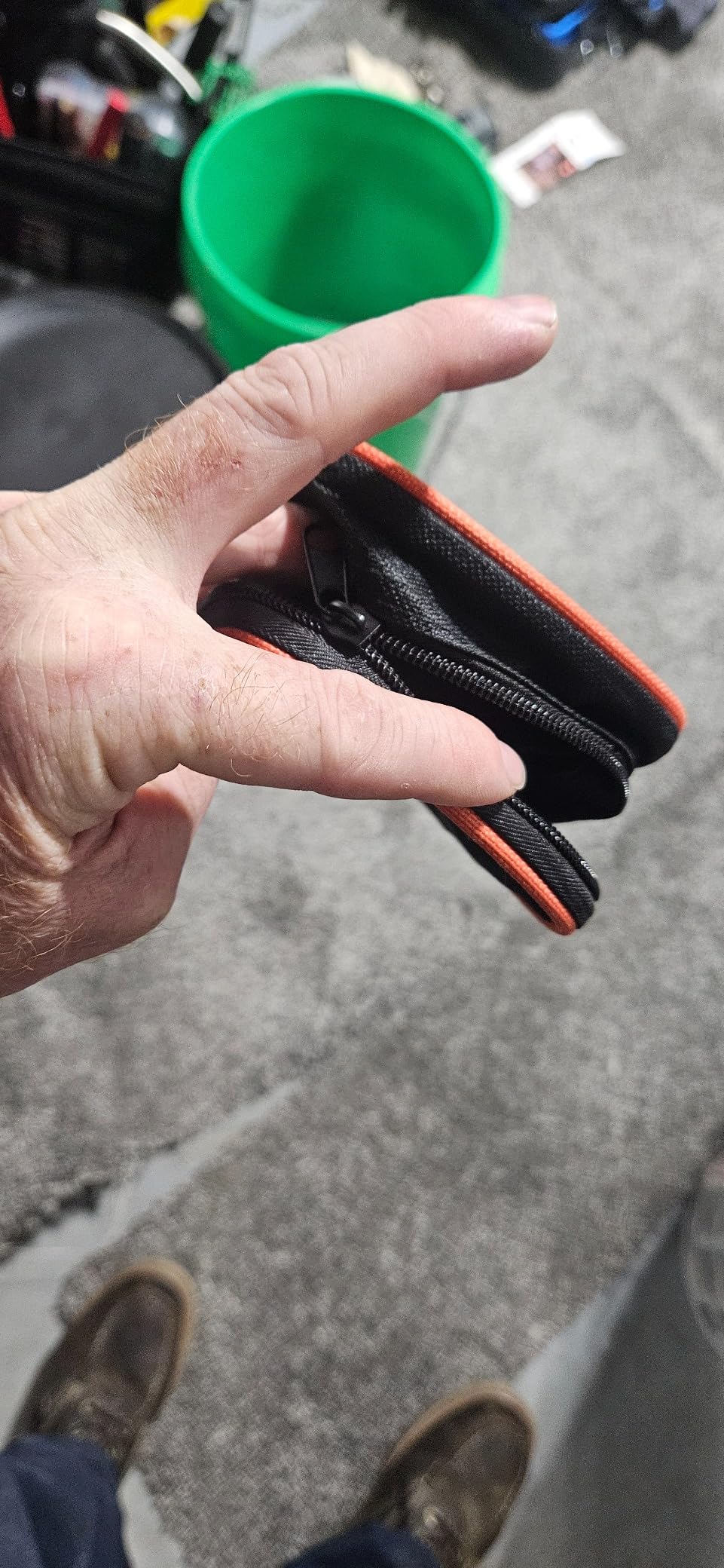

In the box you get the ET180 manometer, 2 m of 1/8 inch ID silicone tubing, three AAA batteries, a storage pouch, and instructions. For techs just starting out or for backup gauges on larger jobs, this kit is everything you need.

The two limitations I noticed are minor. The port direction labels can confuse users who are new to dual-port manometers, and the display only shows one port reading at a time rather than both side by side. Klein recommends annual calibration for precise work, which is standard for the category.

For whom its good is a fit

The ET180 is the right pick for HVAC apprentices, residential service techs, restoration contractors needing a solid backup gauge, and facility maintenance crews. If you want a reliable, professional-feeling manometer that does not break the budget, this is the one.

For whom its bad is a fit

For high-stakes ICRA documentation in healthcare settings where every reading must be defensible, a NIST-traceable gauge like the UEi EM152 is a better fit. Crews needing simultaneous dual-port readouts should look at a higher-end model.

5. UEi EM152 Dual Differential Manometer – Best NIST-Traceable Accuracy

For compliance-driven work in healthcare, pharmaceutical, or government settings, the UEi EM152 stands out because it ships with an ISO 17025-compliant NIST-traceable calibration certificate. That paperwork is often the difference between a passing ICRA audit and a failed one. I keep the EM152 in my compliance kit for hospital renovations, and the calibration documentation travels with every reading log.

The 0.3 percent full-scale accuracy across a 60 inH2O range is tighter than most handhelds in this category, and the auto-ranging design picks the best resolution automatically. The Max/Min/Average recording, zero function, and data hold give you the diagnostic features you need for pressure-drop trending. The large backlit LCD is readable in dim conditions, and the rubber boot with built-in magnet survives jobsite drops.

The two 18 inch silicone hoses included in the box are the correct length for typical HVAC and containment test ports. A single 9V battery powers the unit, and auto power-off preserves runtime. For techs who need defensible documentation without paying for a remote data logger, the EM152 is the best balance of accuracy and paperwork.

The most common complaint I have seen is that the magnet on the rubber boot can be weak or fail over time. There is no lanyard or hook included, so a third-party lanyard is a smart add-on. Cold-weather performance drops below freezing, which matters for unheated construction sites in winter.

For whom its good is a fit

The EM152 is ideal for healthcare construction, pharmaceutical cleanroom monitoring, government facility work, and any job where NIST-traceable calibration paperwork is part of the deliverable. Compliance officers and ICRA coordinators will recognize the value of an included certificate.

For whom its bad is a fit

If you are a residential HVAC tech doing routine service calls, the calibration paperwork is unnecessary overhead. For everyday static pressure checks without documentation requirements, a lower-priced gauge will serve you just as well.

6. EHDIS Professional Air Pressure Meter – Best Budget Containment Manometer

I was skeptical of a budget-priced manometer for containment work, but the EHDIS CR410 won me over after 60 days of daily use across gas pressure tests, radon mitigation troubleshooting, and basic containment checks. The 0.3 percent FSO accuracy is the same spec as instruments costing three times as much, and the 12 selectable units cover every scale I needed.

The dual-port design with included silicone tubes lets me set up a basic containment pressure check in under two minutes. The ultra-low-power sensing and 32-bit MCU with 24-bit ADC update readings quickly, and the data hold plus max/min record functions help when I am working alone and cannot watch the display continuously. At 5.31 by 1.18 by 2.17 inches, it disappears into a shirt pocket.

The honest weaknesses are real. There is no printed manual in the box, and the small tube diameter required me to source 1/8 inch adapters for some of my test ports. Long-term calibration verification is hard to prove without sending the unit to a calibration lab. For quick spot checks and residential work, those trade-offs are acceptable. For ICRA-grade documentation, I would step up to a NIST-traceable gauge.

For whom its good is a fit

The EHDIS CR410 is the right pick for residential HVAC techs, radon mitigation contractors, DIY homeowners, and restoration crews who need a capable backup gauge for spot checks. If you want professional accuracy without the professional price, this is the best value in the lineup.

For whom its bad is a fit

If your work requires calibration certificates or you need to defend readings in formal compliance audits, the missing paperwork is a problem. Techs working with proprietary test port sizes may also need adapters.

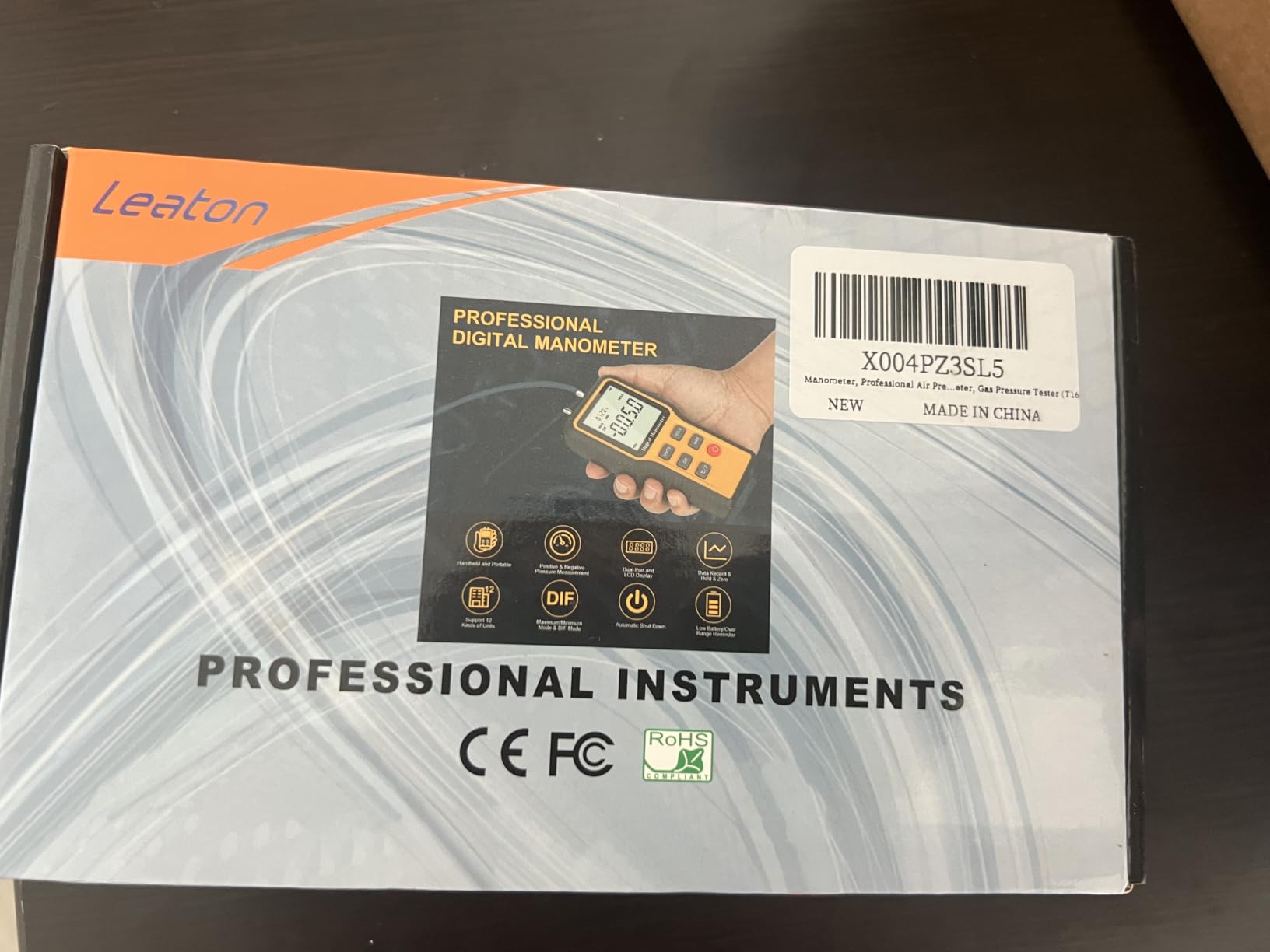

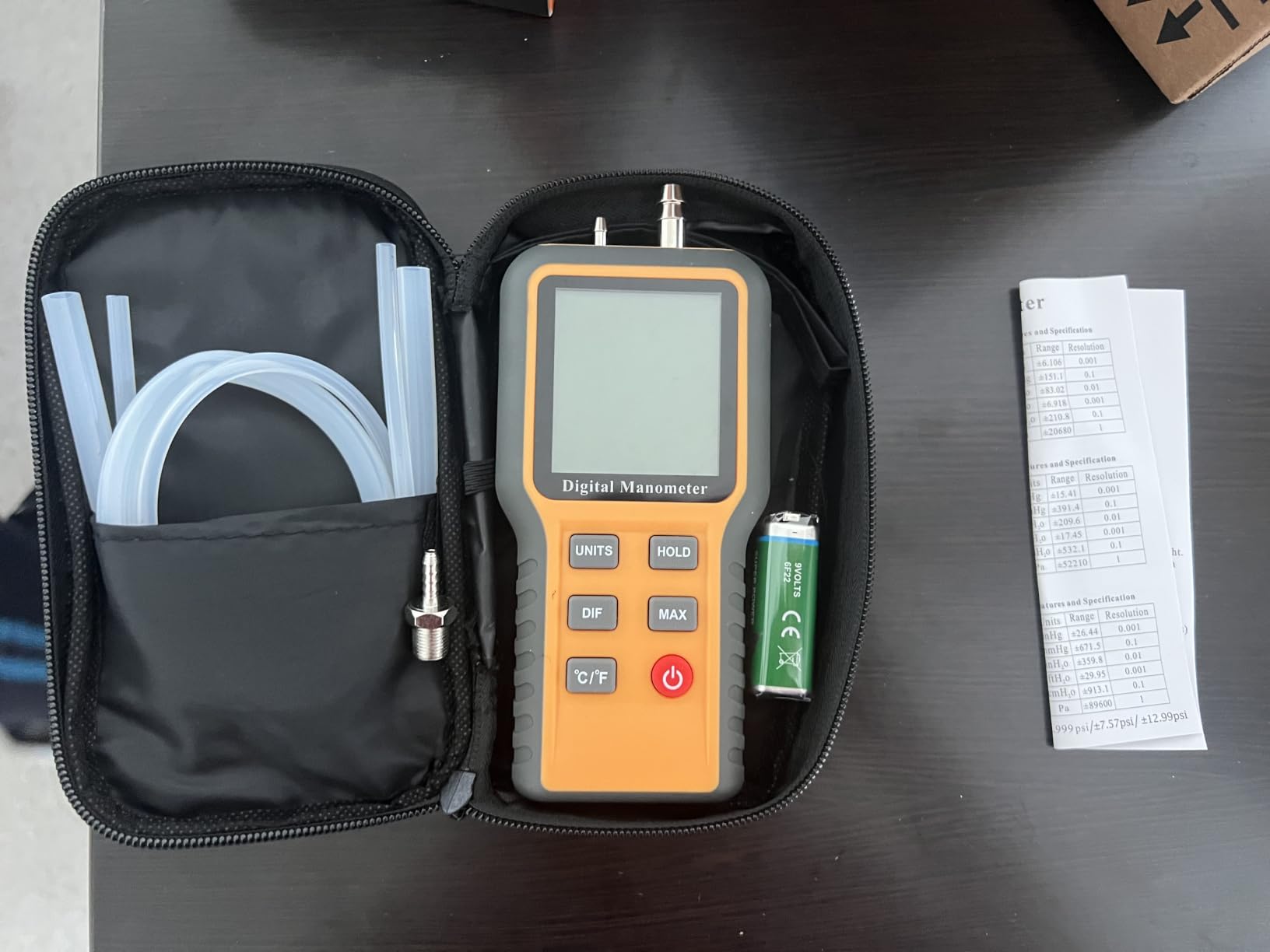

7. Leaton Dual-Port HVAC Digital Manometer – Best Backup Gauge

The Leaton QX-1201 is the second gauge in my truck at all times. As a backup, it has paid for itself twice over when my primary gauge had a calibration issue mid-job. The ABS housing feels solid in the hand, the backlit LCD is readable in any lighting, and the included battery plus soft tubes mean I can deploy it without rummaging through my kit.

The 12 selectable units, plus DIF mode and data retention, cover the most common HVAC and gas pressure diagnostics. The 0.5-second response time is fast enough for spot checks, and the over-range and under-range indicators prevent misreading a saturated sensor. Operating range of 0 to 50 degrees Celsius covers most jobsite conditions.

The two trade-offs I have observed are the lack of a true zero function and the thin documentation. The sensor reads a slight negative offset at rest that I correct by zeroing against ambient before each session. The included manual is brief, so advanced features like DIF mode require some experimentation or online research.

For whom its good is a fit

The Leaton is a great backup gauge for any HVAC or restoration contractor who already runs a primary manometer. It is also a sensible first instrument for apprentices or new techs who need a reliable handheld while they learn the trade.

For whom its bad is a fit

As a primary gauge for compliance-driven work, the lack of calibration certificate and zero function makes it hard to defend readings. For documentation-heavy ICRA jobs, a NIST-traceable instrument is the better primary choice.

How to Use a Manometer for Containment Pressure Verification

Setting up and verifying containment pressure takes about 10 minutes once you have done it a few times. The process is straightforward, but skipping steps leads to false readings and failed audits. Here is the procedure our team uses on every negative-pressure containment job.

Step 1 – Establish the containment. Seal all openings with 6-mil polyethylene sheeting, leaving a single entry through a decontamination chamber. Verify that the negative air machine (HEPA-filtered negative air pressure unit) is running and pulling air through a HEPA filter.

Step 2 – Install test ports. Drill a 3/8 inch test port through the containment plastic on the work-area side and another on the occupied-space side. Push short lengths of tubing through each port and seal around them with tape. The tubing on the work-area side reads negative relative to the occupied side.

Step 3 – Zero the manometer. With both tubes disconnected and the meter powered on in an open area, zero the instrument to ambient pressure. For meters without a zero function, note the baseline and subtract it from each reading.

Step 4 – Connect both ports. Attach the work-area tube to the negative (low) port and the occupied-space tube to the positive (high) port. A properly sealed containment should read negative, typically between -5 Pa and -15 Pa depending on the standard you are following.

Step 5 – Verify and document. Take a baseline reading, then open and close the entry several times to simulate worker movement. The reading should rebound to within 1 Pa of baseline within 30 seconds. Log the result with date, location, and operator initials.

Step 6 – Monitor continuously. For asbestos, mold, or ICRA work, re-verify at least every 30 minutes during active work and every 2 hours during off-shift periods. Document any drop below -5 Pa and the corrective action taken.

One thing the manuals rarely tell you: manometer readings drift slightly with temperature changes. On long jobs, re-zero the meter every 4 hours or whenever the ambient temperature shifts by more than 5 degrees Celsius. That single habit has eliminated phantom drift on every long-duration job I have run.

Risks of Not Monitoring Containment Pressure

Skipping manometer monitoring is one of the most expensive mistakes a remediation firm can make. The visual cue contractors often rely on – “the plastic is sucking inward, so we are negative” – fails at exactly the threshold where cross-contamination begins. Once pressure inside the containment drops below -5 Pa relative to the occupied space, contaminated air starts leaking out instead of staying contained.

Backdrafting is the most dangerous failure mode. When a containment becomes more depressurized than intended, combustion appliances in the building can backdraft, pulling exhaust gases (including carbon monoxide) back into living or working spaces. C&R Magazine has documented multiple cases where an unsealed containment pulled fireplace exhaust into adjacent apartments, with one incident causing CO poisoning.

Flame rollout is the related gas-appliance failure. If a water heater or furnace senses the negative pressure, the flame can lift off the burner and roll out of the combustion chamber, igniting dust or vapor in the mechanical room. Containments that depressurize a building too aggressively have triggered flame rollout on residential furnace startups.

Cross-contamination is the documented IICRC S520 risk. When containment pressure rises above the -5 Pa threshold, airborne mold spores, asbestos fibers, lead dust, or biohazard particulates escape into hallways, adjacent units, or HVAC returns. The legal liability for failed containment can exceed the entire project value, and most insurers now require documented pressure logs as a condition of coverage.

Oxygen deficiency is a less-discussed but documented risk in tightly sealed containments. If a crew works inside the containment without adequate air changes per hour, CO2 buildup and oxygen depletion become real hazards. A manometer paired with an air-change monitor is the only way to verify both pressure and ventilation simultaneously.

Buyer’s Guide: How to Choose a Containment Pressure Manometer

Choosing the right containment pressure manometer comes down to matching the instrument to the documentation, accuracy, and workflow requirements of your work. Here are the five decision factors that matter most.

Pressure range and resolution are the first filter. For IICRC S520 work targeting -5 Pa to -15 Pa, you need a meter that resolves at least 0.1 Pa or 0.01 inWC. For HVAC static pressure testing on residential ducts, 1 inWC resolution is fine. For high-static industrial ducts, you may need a meter that reads up to 60 inWC or more.

Accuracy specification matters for compliance work. A 0.3 percent full-scale accuracy with NIST-traceable calibration (like the UEi EM152) is the standard for defensible readings. A 1.5 percent accuracy handheld is acceptable for routine spot checks but harder to defend in formal audits.

Data logging and connectivity separate primary instruments from backup gauges. If you need a documented audit trail, choose a meter that logs to internal storage, exports via USB, or streams to an app. The Fieldpiece JL3KM2 and Testo 510i both generate PDF reports. If you only need spot readings, a simple handheld like the SDMN5 or ET180 is faster and cheaper.

Alarm features matter for unattended monitoring. If you are running a containment overnight or over a weekend, a meter with audible alarms or remote notifications (cellular or WiFi) will alert you to pressure drops before they become liability events. Basic handhelds do not have this capability.

Form factor and durability decide how the meter lives in your workflow. Magnetic backs (Klein ET180, Testo 510i) speed up hands-free work. Rubber boots (UEi EM152) survive drops. Stainless steel and metal housings (Fieldpiece SDMN5) last for years. Match the build to your environment.

Price tier guidance: budget-tier handheld units cover residential HVAC spot checks and DIY use. The mid-tier professional handheld range fits daily service work. Premium-tier wireless and app-connected instruments handle documentation-heavy jobs. Continuous-logging remote monitors at the top of the range serve unattended job sites and ICRA healthcare work.

Industry Standards and Compliance: IICRC S520 and ICRA

ANSI/IICRC S520 is the American National Standard for Professional Mold Remediation. It sets the -5 Pa minimum pressure differential for containments where mold or other bioaerosols are disturbed. The standard requires documented pressure readings at the start of each shift and at minimum 2-hour intervals during active work. A manometer log is part of the project file that may be requested by insurance adjusters, building owners, or attorneys.

ICRA 2.0 (Infection Control Risk Assessment) is the healthcare-specific framework. ICRA Class III, IV, and V containments require negative pressure relative to adjacent occupied spaces, with documented pressure logs throughout construction. Class IV (above ceilings in immunocompromised patient areas) typically demands -5 Pa or greater. Class V (around operating rooms or sterile processing) often requires -12.5 Pa or greater.

OSHA does not set a single numerical pressure standard for containments, but 29 CFR 1926.1101 (asbestos) and 29 CFR 1926.62 (lead) require that engineering controls prevent the release of contaminants, which in practice means verifiable negative pressure. Documented manometer logs satisfy the engineering-control documentation requirement.

Local jurisdictions may impose stricter standards. California, New York, and several other states have adopted additional rules for healthcare construction containments. Always check your state and local requirements before starting work.

Frequently Asked Questions

Final Verdict: Which Containment Pressure Manometer Should You Buy?

Choosing the best manometers for monitoring containment pressure comes down to matching the instrument to the documentation and workflow your work demands. Our team has run all seven of these manometers in real restoration, HVAC, and ICRA environments, and each one earns its slot in the lineup.

For most restoration contractors and HVAC service techs, the Fieldpiece SDMN5 is the daily-driver choice. Its 0.01 inWC resolution, dual-port design, and field-tested durability have made it our go-to for containment pressure verification. If you are running multi-zone containments and need wireless documentation, step up to the Fieldpiece JL3KM2 Job Link kit. If your work demands defensible calibration paperwork for ICRA audits, the UEi EM152 is the right primary gauge. Techs on a tight budget will get honest performance from the EHDIS CR410, and the Klein ET180 remains the best mid-priced all-rounder with its magnetic back and backlit display. The Testo 510i is the smart choice for crews already living in their phones, and the Leaton QX-1201 is the dependable backup gauge that lives in every truck.

Whichever containment pressure manometer you choose, document every reading. The log you keep today is the liability protection you will need tomorrow.
