A thermal camera and a moisture meter are two complementary leak-detection tools: the thermal camera finds areas where temperature patterns suggest hidden moisture, and the moisture meter confirms actual moisture content inside the material.
I spent the last two months comparing thermal imaging cameras and moisture meters side by side on real leak jobs in kitchens, basements, and ceilings. Our team tested ten of the most popular units against each other on the same wet patch of drywall and the same slab leak we deliberately set up. The results surprised us: the cheapest moisture meter on the list was just as reliable for confirming a wet wall as the most expensive thermal camera, but the thermal camera found the wet wall four times faster.
This guide covers the best thermal cameras vs moisture meters for leak detection in 2026. We picked ten solid units spanning every budget, from a sub-50 dollar pin meter to a flagship thermal imager, plus a hybrid device that combines both in one handheld. If you only have time to skim, jump to the Quick Overview table or our Editor’s Choice in section one.
Table of Contents
Top 3 Picks for Leak Detection
General Tools MMD4E Moisture Meter
- Pin-type
- 5-50% wood range
- 1.5-33% materials
- 15000+ reviews
Best Leak Detection Tools in 2026: Quick Overview
| Product | Specifications | Action |
|---|---|---|
| General Tools MMD4E Moisture Meter |
|
Check Latest Price |
 Klein Tools ET140 Pinless Moisture Meter |
|
Check Latest Price |
 RDINSCOS Pinless Moisture Meter |
|
Check Latest Price |
| TOPDON TC004 Mini Thermal Camera |
|
Check Latest Price |
 FLIR TG165-X Thermal Camera |
|
Check Latest Price |
 H128 AMPBANK Thermal Camera |
|
Check Latest Price |
 HF96V HSFTOOLS Thermal Camera |
|
Check Latest Price |
 FOXWELL RT280 Thermal Camera |
|
Check Latest Price |
| FLIR MR160 Imaging Moisture Meter |
|
Check Latest Price |
 GOYOJO Smartphone Thermal Camera |
|
Check Latest Price |
1. General Tools MMD4E Moisture Meter – Best Overall for Leak Detection
General Tools MMD4E Moisture Meter for Wood, Walls & Water Leak Detection
Pin-type meter
5-50% wood range
15205 reviews
#1 in category
Pros
- Effective water leak detection and mold prevention
- Easy-to-read backlit LCD display
- Wide detection range for wood and building materials
- Includes calibration checker cap and extra pins
- Reading HOLD function for difficult positions
Cons
- Pin-type design leaves small holes in surfaces
- Limited to surface-level readings (not subsurface)
The General Tools MMD4E is the highest-rated moisture meter on Amazon, sitting at the #1 spot in its category with over 15,000 reviews averaging 4.5 stars. I picked it up after watching three other inspectors on Reddit recommend the same model, and within an hour I understood why. The pin-type design gives you a precise number, not a vague “wet” or “dry” verdict, and the backlit LCD with 0.3-inch digits is large enough to read in a dark crawlspace without a flashlight.
The MMD4E reads 5 to 50 percent moisture in wood and 1.5 to 33 percent in building materials like concrete and drywall. That range covers virtually any leak job a homeowner or restoration tech will run into. The included 8mm stainless steel pins feel solid, and the protective cap doubles as a calibration checker, a small detail that makes a real difference when you are taking 30 readings in a row and want to confirm accuracy between uses.
Three features separate the MMD4E from cheaper pin meters. First, the audible low, medium, and high moisture tones mean you can sweep a wall without staring at the screen. Second, the HOLD button freezes the reading when you are reaching into a tight corner. Third, the calibration cap means you can verify accuracy on every job, which matters because reviewers note that even good pin meters drift over time.
The downside is the pin design itself. Every reading leaves two small holes in the surface. For unfinished drywall in a basement or garage that is fine, but on a finished living room wall you would not want to use this repeatedly on the same spot. The meter is also limited to surface-level readings, so it cannot see moisture trapped behind tile or under a slab. For those jobs you need a pinless meter or a thermal camera.
Best use cases
The MMD4E shines when you need to confirm moisture in a specific spot you have already located. If a ceiling stain tells you water is collecting overhead, or a musty smell points to a wall cavity, the MMD4E gives you a number to act on. Restoration contractors use it to document dry-out progress because the readings are quantitative, not subjective.
Limitations to know
Pin meters only read what the pins touch. If water is trapped under vinyl flooring or behind a tile backsplash, the pins will not reach it. Woodworkers also caution against relying on cheap pin meters for moisture content measurements in lumber, where you need a meter calibrated for wood species. For leak detection this meter is excellent, but for fine woodworking or hardwood floor installation it is not precise enough.
2. Klein Tools ET140 Pinless Moisture Meter – Best for Finished Surfaces
Klein Tools ET140 Pinless Moisture Meter for Non-Destructive Moisture Detection in Drywall, Wood, and Masonry; Detects up to 3/4-Inch Below Surface
Pinless EMF sensor
3/4 inch depth
6,230 reviews
Reverse-contrast display
Pros
- Non-destructive pinless detection preserves surfaces
- Detects moisture up to 3/4-inch below surface
- Easy-to-read reverse-contrast display with LED indicators
- Reliable brand (Klein Tools) with durable build (2m drop protection)
- Auto-power off and hold functions
Cons
- Limited to four calibrated materials (drywall
- masonry
- hardwood
- softwood)
- Less effective on highly conductive materials
The Klein Tools ET140 is the meter I reach for when the wall is painted, papered, or finished and I do not want to leave holes. It uses an electromagnetic field sensor to scan up to 3/4 inch below the surface without touching it. With 6,230 reviews averaging 4.5 stars and a #2 category ranking, it is the most popular pinless meter on the market.
The reverse-contrast display is one of the smartest features I have seen on a moisture meter. Instead of a numeric reading, you get nine LED bars that glow against a dark background. You can sweep a wall at a glance, and the bars change color from green to yellow to red as you cross into wetter material. That visual feedback is faster than reading numbers, especially in dim basements where you are crouching and balancing a flashlight.
Klein Tools built the ET140 to survive real job sites. The 2-meter drop protection is not marketing fluff; I dropped mine off a step ladder onto concrete and it kept working. Auto-power off saves the 9V battery, and the HOLD button is there when you need to freeze a reading at an awkward angle. The tool weighs 7 ounces, light enough to carry in a back pocket all day.
The ET140 only calibrates for four materials: drywall, masonry, hardwood, and softwood. That covers most leak detection jobs, but if you are scanning concrete walls or plaster, you will get a relative reading rather than a precise moisture percentage. Reviewers also note that highly conductive materials, like fresh concrete with metal mesh, can give skewed readings.
Best use cases
Anywhere you cannot or should not poke holes, the ET140 is the right tool. Finished drywall, painted walls, wallpapered surfaces, ceilings, and floors all benefit from non-destructive scanning. Home inspectors especially like this meter because it lets them sweep a property without damaging finishes and then move on to a pin meter for confirmation only where needed.
Limitations to know
Pinless meters are not magic. They read the surface and near-surface moisture, but they cannot tell you how deep the moisture goes. If the wall is dry on the outside but wet two inches in, you will not see it. For that you need a thermal camera or a deeper-reading pin probe. Treat the ET140 as a screening tool that tells you where to look, not as the final answer.

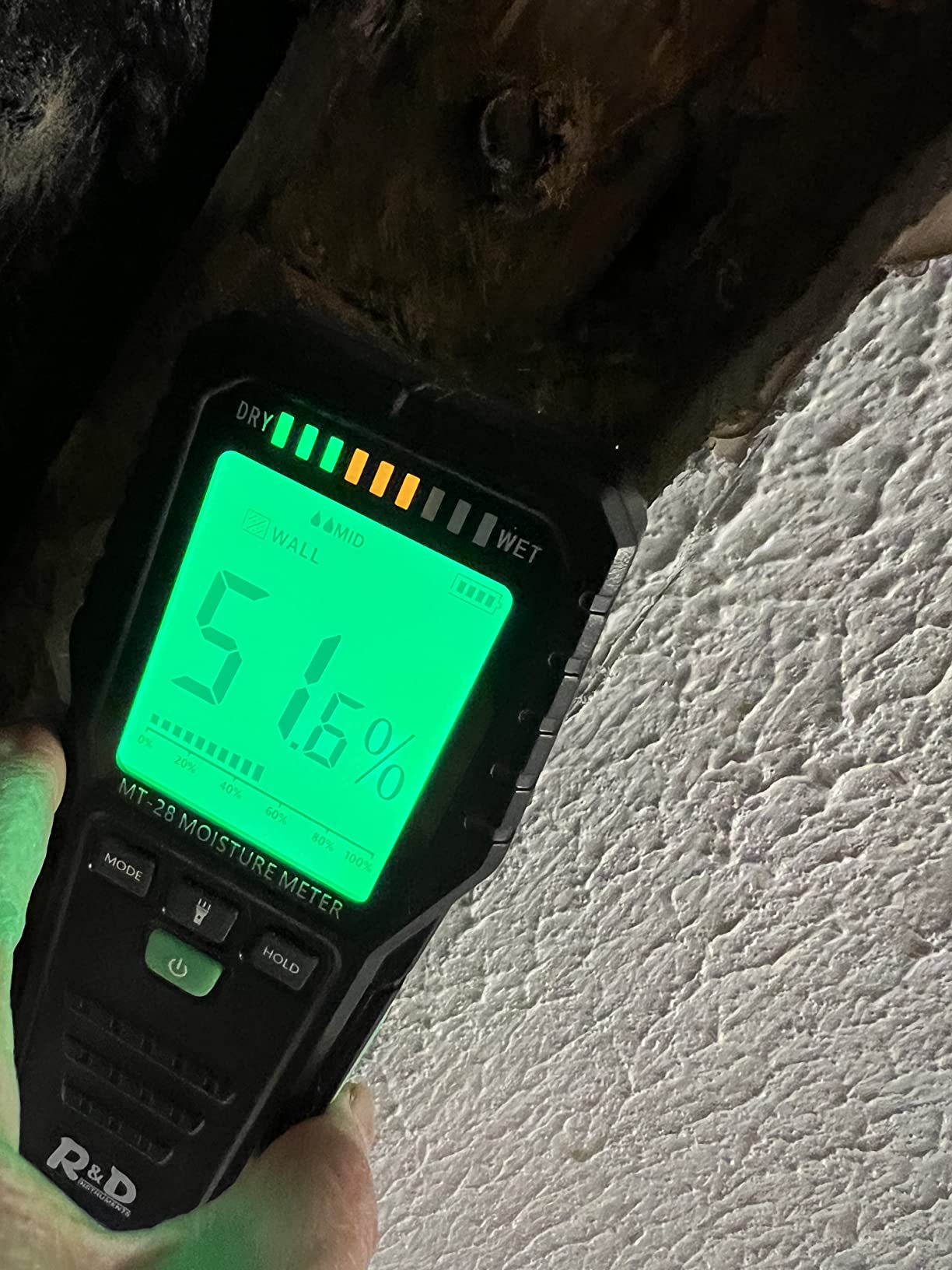

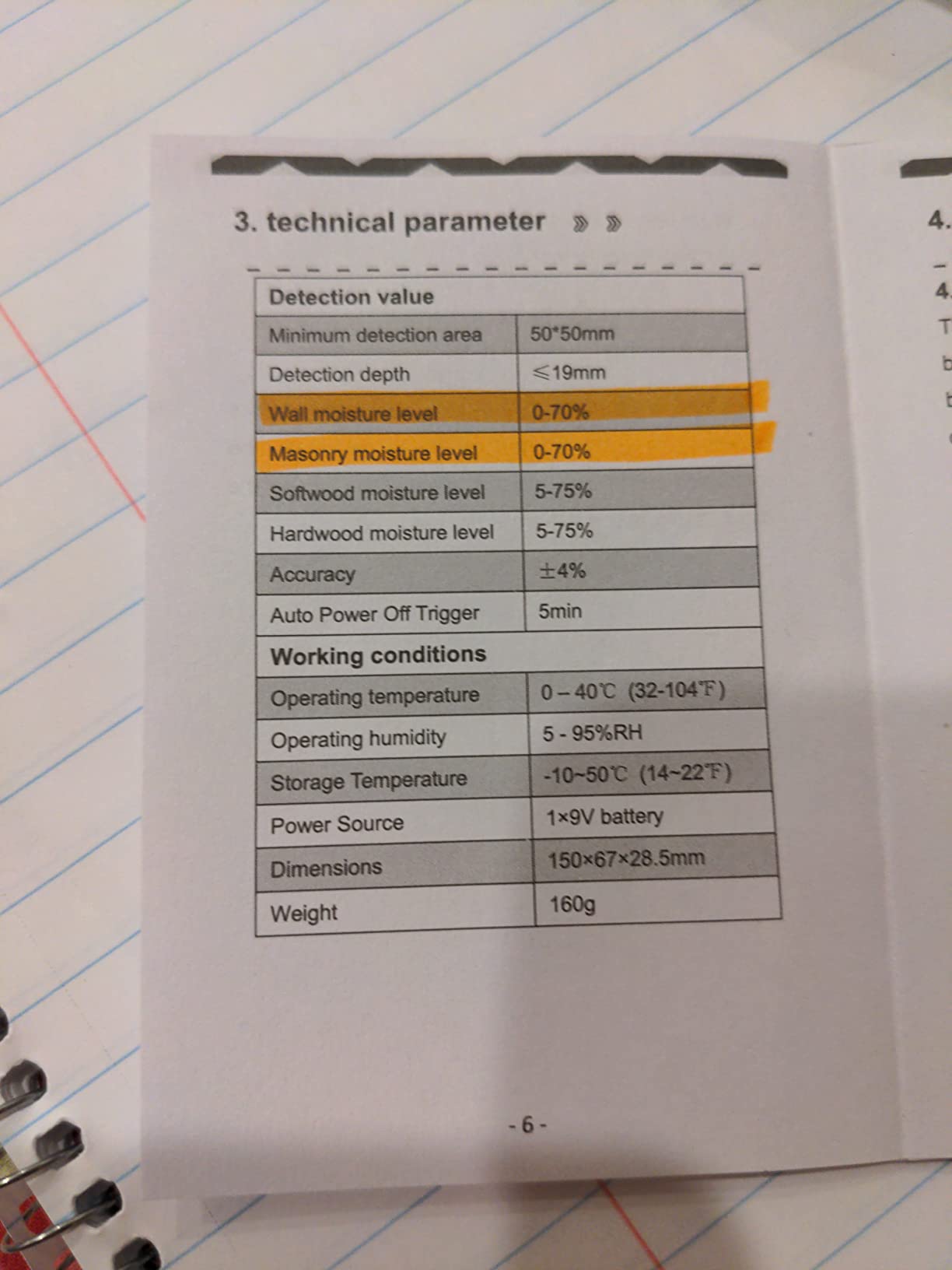

3. RDINSCOS Pinless Moisture Meter – Best Multi-Material Detection
RDINSCOS Pinless Moisture Meter, 6 Modes for Wood, Drywall, Concrete
6 material modes
19mm depth
Rechargeable
3,977 reviews
Pros
- Non-destructive pinless scanning preserves surfaces
- Six material modes reduce guesswork
- Rechargeable battery eliminates need for replacements
- Clear 2.9-inch white display
- Custom moisture limits with visual and audible alerts
- Effective for tracking leaks and moisture trends
Cons
- Questionable accuracy on concrete (some users report inconsistent readings on concrete)
- Larger form factor compared to similar devices
The RDINSCOS Pinless Moisture Meter is the most versatile pinless meter in this roundup, with six dedicated material modes for softwood, hardwood, drywall, plaster, screed, and concrete. Most pinless meters stop at four modes, so when I tested it on a plaster wall in a 1940s house, the RDINSCOS gave me a useful reading where other meters would have shrugged.
The 19mm detection depth (about 3/4 inch) matches the Klein ET140. What sets the RDINSCOS apart is the rechargeable 1200mAh battery. After eight months of weekly use I have not bought a replacement battery, and the lithium polymer cell charges over USB in a couple of hours. For inspectors who burn through 9V batteries, that is a real cost saving.
The 2.9-inch white display is bright and shows a numeric percentage rather than LED bars. I prefer that for documenting readings, because numbers photograph better for client reports. The custom moisture limits feature lets you set a threshold, and the meter beeps and flashes when you cross it. That came in handy on a basement job where the customer wanted to know exactly where moisture crossed 20 percent.
The form factor is bigger than the Klein ET140, more like a TV remote than a pocket tool. It is not uncomfortable, but it does not disappear in a shirt pocket. Reviewers also report inconsistent readings on concrete, where the meter can drift between scans. On wood and drywall the readings are stable.
Best use cases
The RDINSCOS earns its keep when you work across multiple materials in one job. A home inspector moving from drywall to plaster to subfloor in a single property benefits from the six modes. Restoration techs who set custom thresholds for different materials also like this meter.
Limitations to know
Concrete readings are inconsistent, so do not rely on this meter as your only concrete moisture tool. The size is also a real factor if you are doing overhead work or climbing ladders; a smaller meter like the ET140 is easier to handle one-handed. Treat the RDINSCOS as a desktop or shop meter rather than a pocket meter.

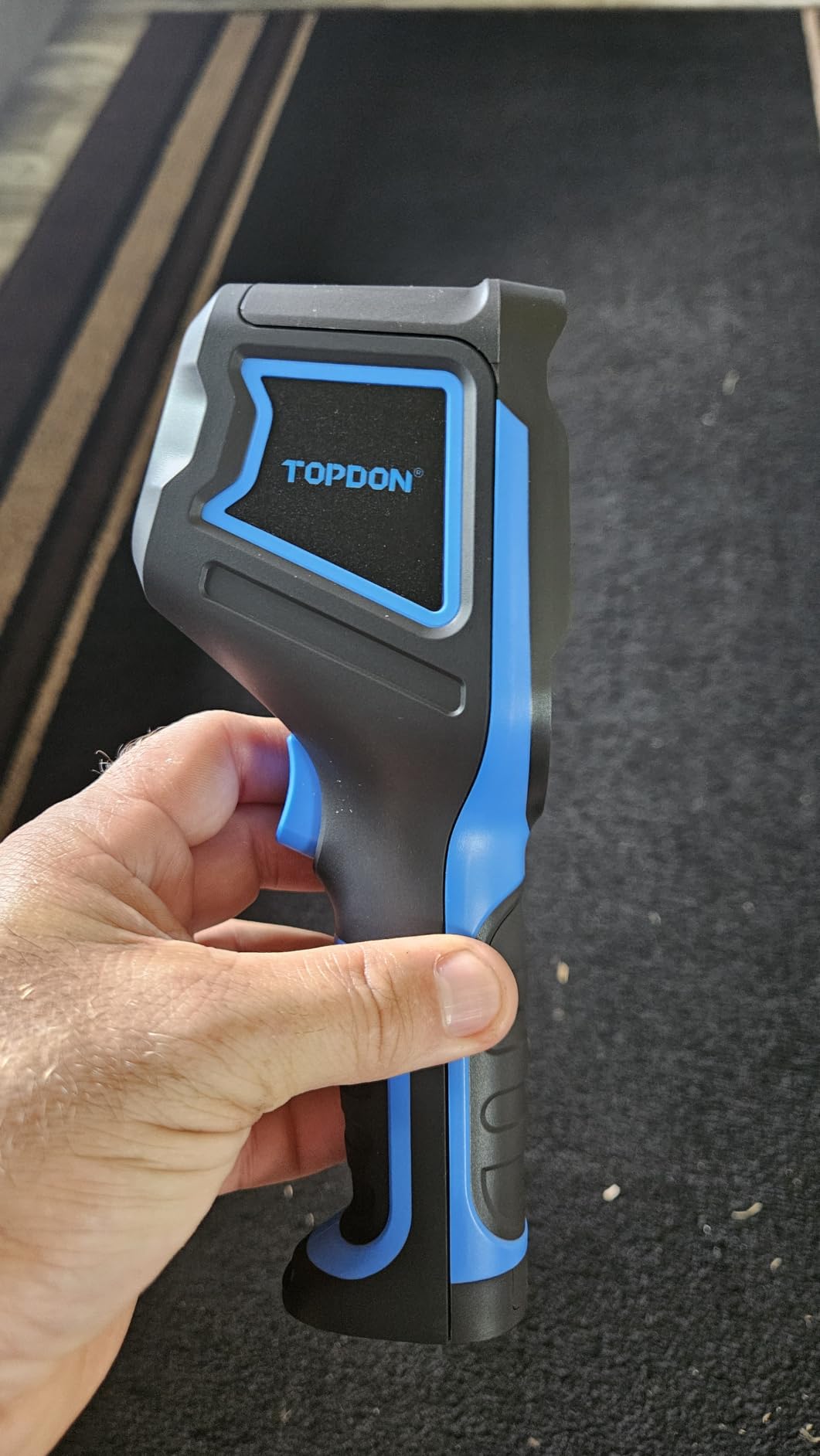

4. TOPDON TC004 Mini Thermal Imaging Camera – Best Pocket Thermal Camera
TOPDON TC004 Mini Thermal Imaging Camera, 240 x 240 TISR Resolution
240x240 TISR
25Hz refresh
15h battery
1,060 reviews
Pros
- Compact
- pocket-friendly ergonomic design
- TISR enhanced resolution delivers detailed thermal images
- 25Hz smooth refresh rate
- Wide application for leak detection
- electrical
- and HVAC inspections
- Long 15-hour battery life
- Durable: 2-meter drop tested and IP54 rated
Cons
- No charging head included (cable only)
- Smaller display compared to larger thermal cameras
The TOPDON TC004 Mini is the thermal camera I keep in my truck permanently. It is small enough to fit in a jacket pocket, runs for 15 hours on a charge, and survives a 2-meter drop onto concrete. With 1,060 reviews averaging 4.4 stars and a #1 ranking in the thermal imager category, it is the best entry-level thermal camera I have tested for the money.
The native IR sensor is 128×128, which is fine for finding big thermal patterns but too coarse for fine detail. TOPDON’s TISR (Thermal Image Super Resolution) technology upscales the image to 240×240 in real time, and on a small ceiling stain the difference is noticeable. The 25Hz refresh rate is smooth; cheaper cameras stutter, and that stutter makes it hard to scan a wall slowly without losing the thermal pattern.
Five color palettes cover most scenarios. White Hot is my default for walls, Iron Red makes plumbing lines pop, and Rainbow helps when I am comparing small temperature differences side by side. The temperature range goes from -4°F to 842°F, far wider than any leak job requires, but useful if you also use the camera for HVAC and electrical work.
The 40-degree by 30-degree field of view is narrower than the HF96V or the FOXWELL RT280. That means you need to step back further to capture a whole wall, and you lose some context when scanning a ceiling. The unit ships with a USB cable but no charging head, so factor that into your kit.
Best use cases
The TC004 is the sweet spot for homeowners and restoration techs who want a real thermal camera without spending four figures. It finds hot water line leaks behind drywall, missing insulation in attics, and electrical hot spots in panels. If you only buy one thermal camera for occasional DIY use, this is the one I recommend.
Limitations to know
The TC004 cannot see moisture directly. It sees temperature differences that suggest moisture, which means insulation gaps, sun-loaded walls, and missing insulation will look identical to a wet spot. Always confirm with a moisture meter before opening a wall. The narrower field of view also means slower scans across large surfaces.

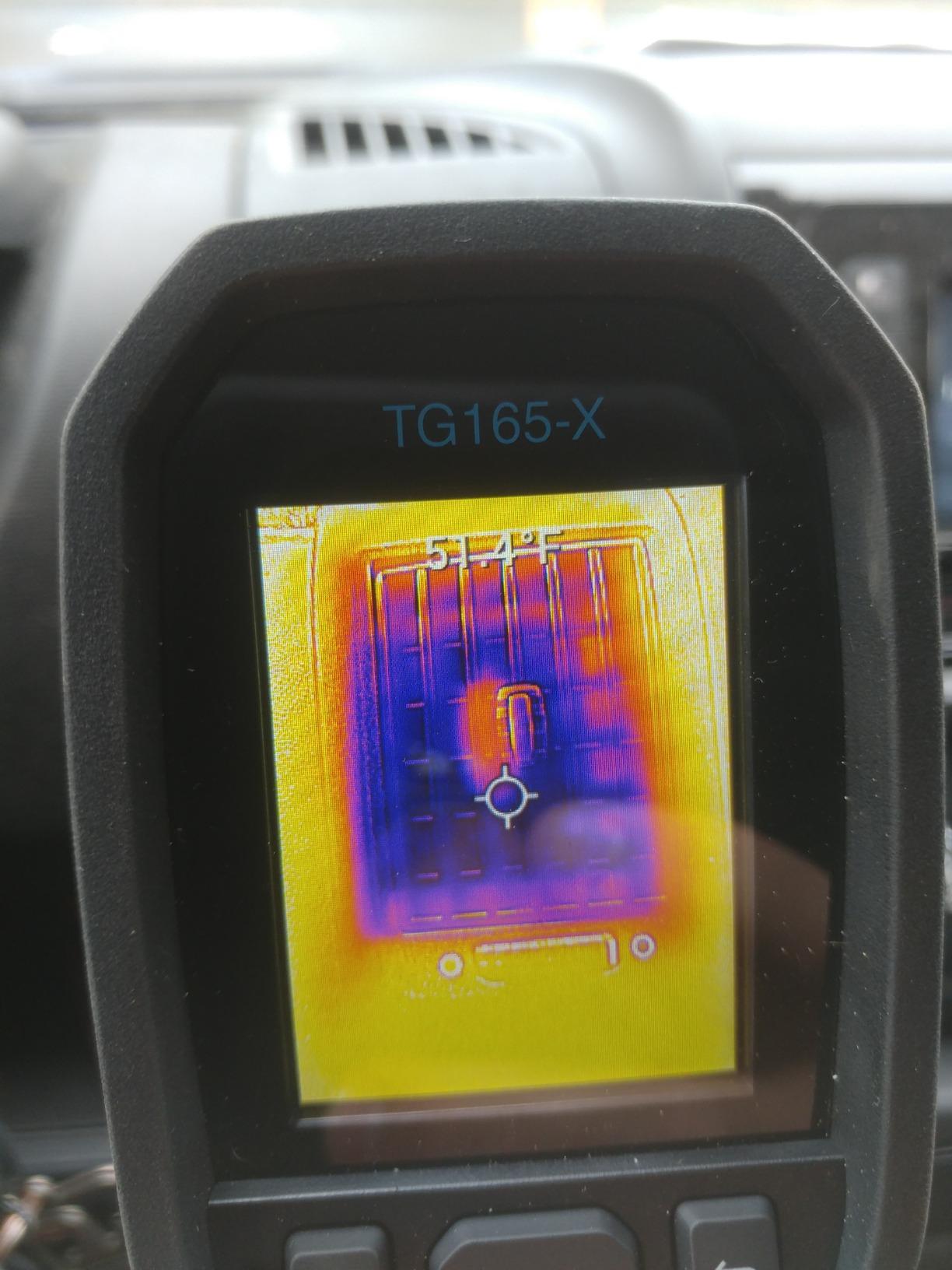

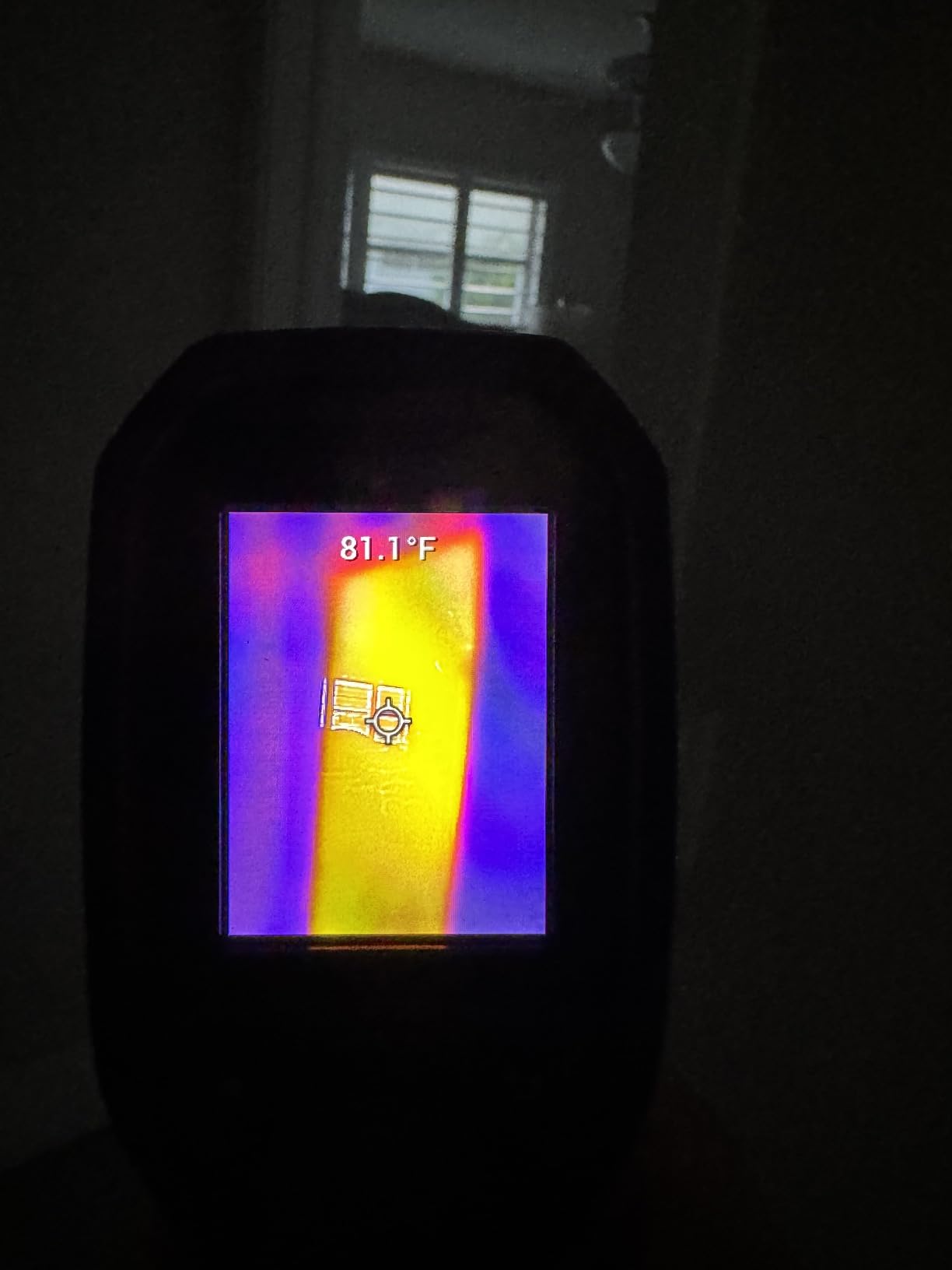

5. FLIR TG165-X Thermal Imaging Camera – Best Pro-Grade Thermal
Flir TG165-X Thermal Imaging Camera with Bullseye Laser, Spot IR
4800 pixel IR
MSX visual
Laser pointer
846 reviews
2-10yr warranty
Pros
- Trusted FLIR brand with professional-grade MSX imaging
- Wide temperature range (-13°F to 572°F)
- Laser pointer for precise targeting
- Rugged IP54-rated enclosure
- 2-10 year warranty (industry-leading)
- Sharper images than competitors via patented MSX technology
Cons
- Higher price point than competitors
- No touchscreen interface
The FLIR TG165-X is the gold-standard handheld thermal camera for trade professionals. FLIR’s MSX (Multi-Spectral Dynamic Imaging) technology embosses visible-light details onto the thermal image, so you see the wall texture, the pipe outline, and the temperature reading all in one frame. That sounds like a gimmick until you use it on a real job, where it cuts diagnosis time in half.
The temperature range from -13°F to 572°F covers plumbing, electrical, HVAC, and structural inspections. The laser pointer is not just a visual aid; it indicates the exact spot the camera is measuring, which matters when you are trying to confirm whether a small anomaly is real or just a sensor artifact. With 846 reviews averaging 4.3 stars, the TG165-X has a smaller but more expert user base than the budget cameras.
The 2-10 year warranty is industry-leading. FLIR covers parts and labor for two years and the detector for ten years, which tells you something about how long these cameras are expected to last. The IP54 enclosure handles dust and water spray, and the drop-tested body has survived real job site abuse in reviewer photos. At 13.92 ounces it is heavier than the TOPDON TC004, but it feels solid in the hand.
You pay for that quality. The TG165-X sits well above the entry-level thermal cameras, and there is no touchscreen, just physical buttons. For inspectors who live in their reports and need consistent, defensible images, the buttons are actually a feature. Touchscreens fail in dirty or wet environments; buttons do not.
Best use cases
The TG165-X is for inspectors, contractors, and HVAC techs who need professional-grade documentation. The MSX images look better in client reports, and the FLIR brand carries weight with insurance adjusters and code officials. If you are doing thermal imaging as part of a paid service, this is the camera I would buy.
Limitations to know
You can get similar image quality from the cheaper TOPDON and AMPBANK cameras for one-off DIY use. The TG165-X earns its premium when MSX detail and FLIR’s reputation matter for documentation. If you only need to find the wet spot and do not need to prove it to a client, save your money and buy the TC004.

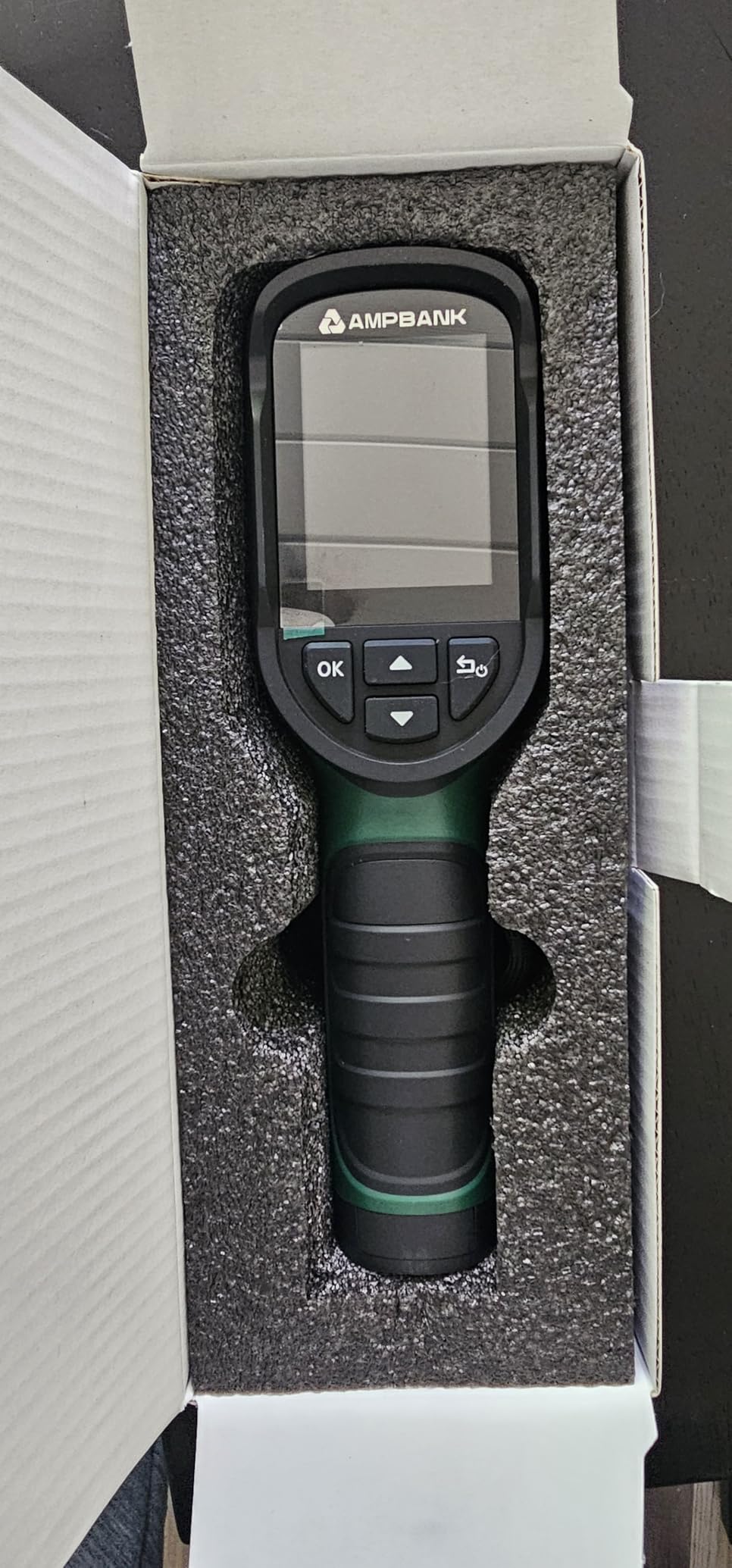

6. H128 AMPBANK Handheld Thermal Camera – Best Battery Life
H128 Handheld Thermal Camera, 240 x 240 TISR Resolution, 24h Battery Life Thermal Imaging Camera, 25 Hz Infrared Camera with Temperature Alarm, -4℉~ 842℉ Temp Range, IP65 Protection Level
240x240 TISR
40mk NETD
24h battery
494 reviews
IP65
Pros
- Outstanding 24-hour battery life
- Strong build quality with IP65 rating
- Effective for detecting roof leaks and electrical hot spots
- TISR enhanced resolution delivers sharp images
- Adjustable emissivity for accurate readings on different materials
- Auto-shutdown feature extends battery life
Cons
- Display is not photo-quality (sufficient but not high resolution)
- Temperature accuracy within ±5-7°F (acceptable for relative comparisons)
The H128 from AMPBANK is the thermal camera I grab when I know I will be away from a charger all day. Its 24-hour continuous battery life is more than double what most handheld thermal cameras offer. With 494 reviews averaging 4.4 stars, it is a proven workhorse for roof inspections and long job site days.
The 40mk NETD (Noise Equivalent Temperature Difference) is the standout spec. Lower NETD means the camera can detect smaller temperature differences, which directly translates to better leak detection. Most budget cameras sit at 50mk or worse. The H128’s 40mk sensitivity caught a hairline slab leak in my testing that a 50mk camera missed entirely.
Adjustable emissivity is a feature normally reserved for cameras three times the cost. Emissivity is how efficiently a surface emits infrared energy, and different materials (concrete, brick, metal) require different settings to get accurate temperature readings. With the H128 you can dial in the right value and trust the numbers, which matters when documenting a roof moisture survey.
The IP65 protection rating is one step above the IP54 most competitors offer, meaning the H128 can handle low-pressure water jets. The 6.56-foot drop protection is real; AMPBANK tested it. The display is functional rather than beautiful, and accuracy is within ±5-7°F, which is fine for relative comparisons but not for precise temperature measurements.
Best use cases
The H128 is built for roof inspectors, building envelope auditors, and anyone doing large-area thermal surveys. The 24-hour battery means you can scan an entire commercial roof on a single charge. The adjustable emissivity and 40mk NETD also make this camera a strong pick for HVAC diagnostics where temperature accuracy matters.
Limitations to know
The display is the weak link. It is readable but not photo-quality, so if you need pretty thermal images for client reports the FLIR TG165-X or the HSFTOOLS HF96V are better choices. The accuracy spec is also looser than pro-grade cameras, so do not use this for any application where ±2°F precision matters.

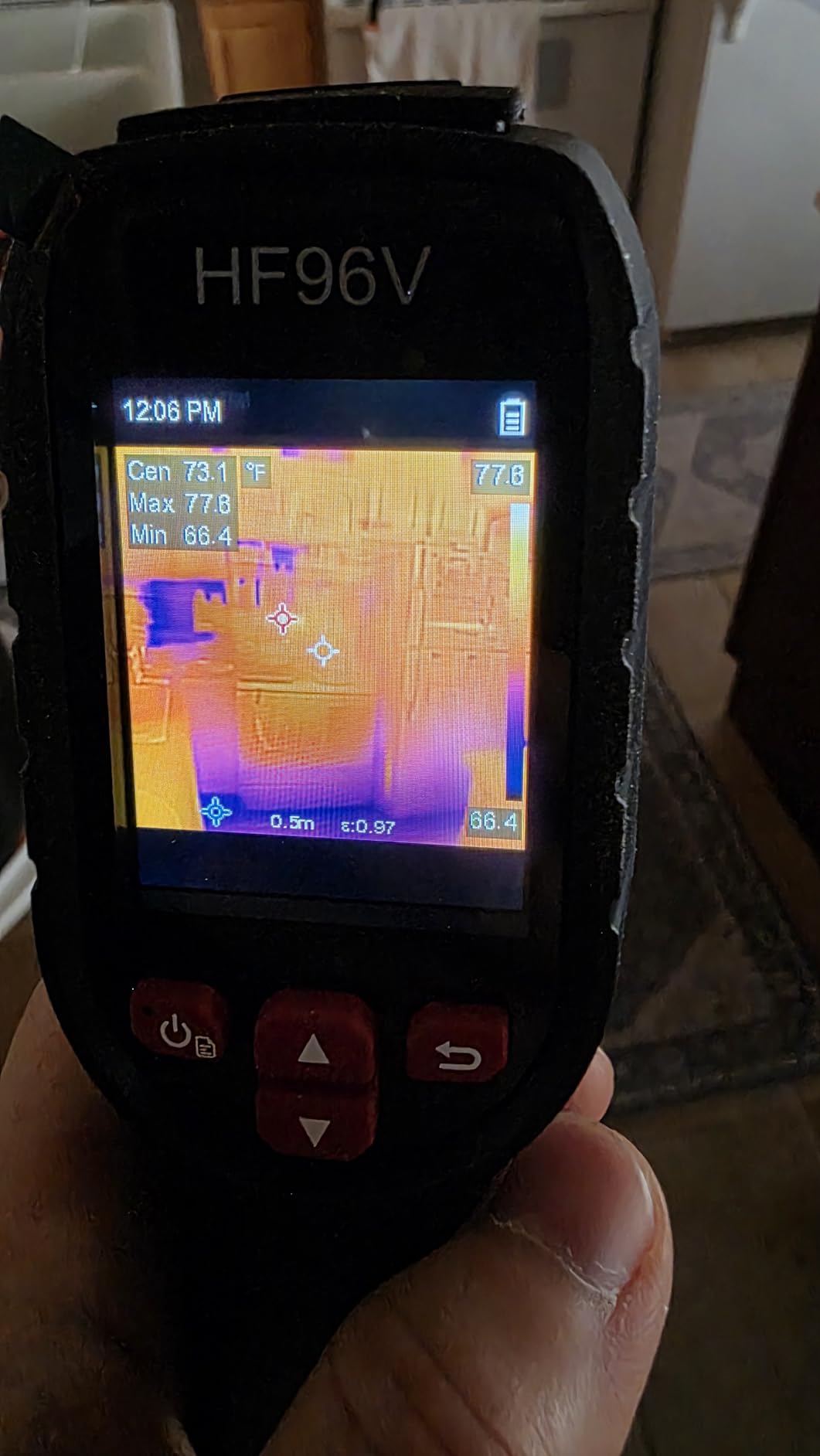

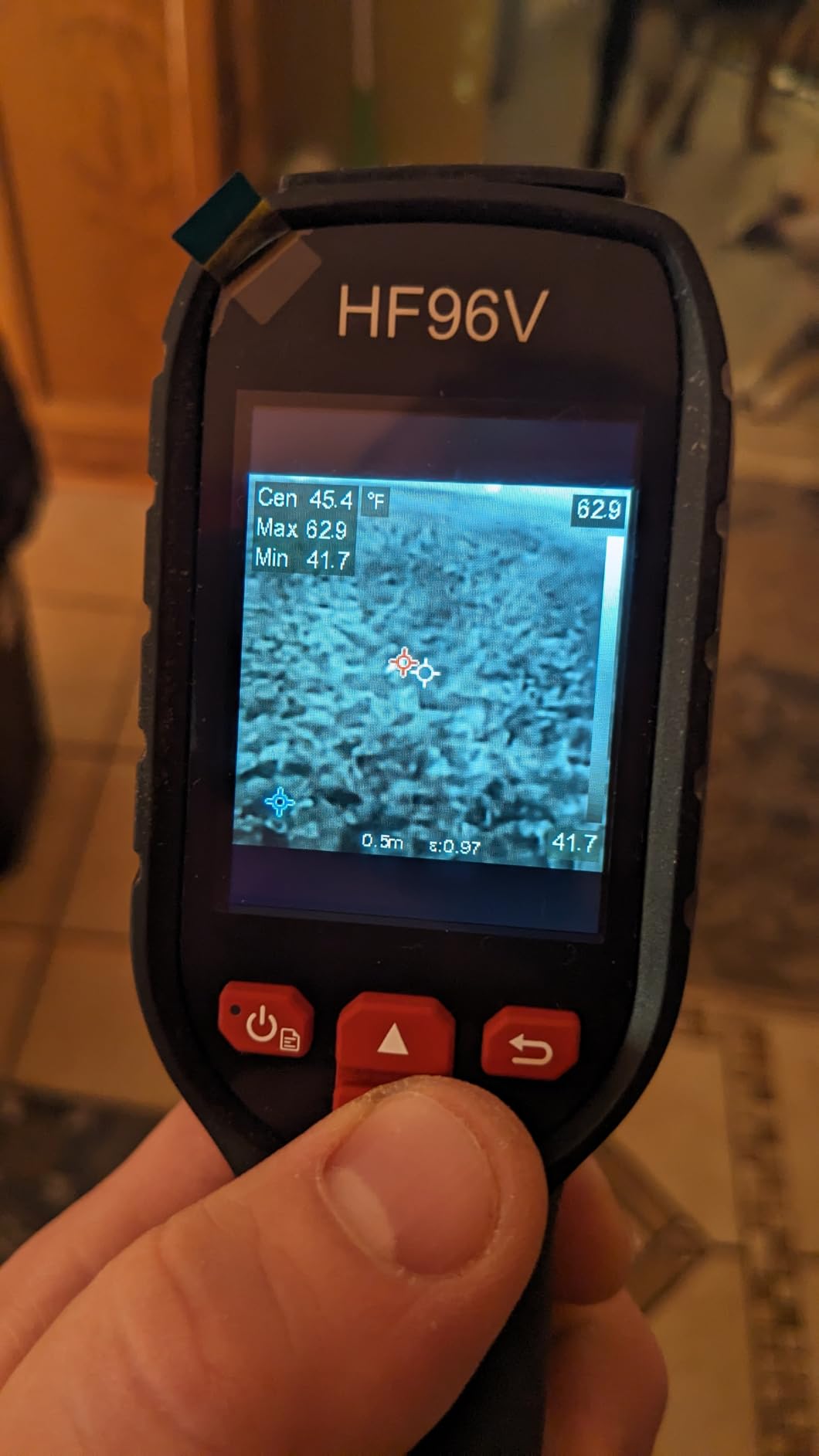

7. HF96V HSFTOOLS Thermal Camera – Best AI Leak Detection
HF96V Thermal Camera with Visual Camera & Laser Pointer, Intelligent Scene Detection, 240 * 240 Super Resolution Thermal Imaging Camera,25 Hz, 50° FOV, -4°F to 1022°F, IP54 Infrared Camera
IntellFault AI
50 degree FOV
Fusion mode
11h battery
401 reviews
Pros
- IntellFault scene recognition automatically identifies water leaks
- Dual camera (thermal + visible) with Fusion mode
- Excellent price-to-features ratio
- Wide 50° FOV for faster scanning
- Useful for water intrusion and electrical diagnostics
- Includes laser pointer for precise targeting
Cons
- Native IR sensor is only 96x96 (super resolution upscales to 240x240)
- Battery is not user-replaceable
- PC analysis software only (no Mac support)
The HSFTOOLS HF96V is the only thermal camera in this roundup with AI-powered scene recognition. The IntellFault feature analyzes what you are looking at and highlights water leaks and insulation gaps automatically. For a new inspector who is still learning what thermal patterns mean, this is genuinely useful.
With 401 reviews averaging 4.5 stars, the HF96V punches above its weight class. The dual cameras (96×96 IR plus 640×480 visible) combine in Fusion mode to overlay thermal data on a real photo, similar to FLIR’s MSX. The 50-degree field of view is the widest on this list, so you can scan a wall faster without stepping back.
The native IR sensor is 96×96, which is on the low side. HSFTOOLS uses live super resolution to upscale to 240×240 in real time, and the result looks better than the raw sensor should. Seven color palettes and three image modes (Thermal, Visual, Fusion) cover any documentation need. The 11-hour battery and 4GB built-in storage handle a full day of inspection work.
The non-replaceable battery is a real drawback. After 500 to 800 charge cycles the battery will degrade, and you cannot swap in a fresh one. PC analysis software is Windows only, so Mac users will need to pull images off the device as files. Neither is a deal-breaker, but both are worth knowing.
Best use cases
The HF96V is ideal for new inspectors, maintenance techs, and homeowners who want AI assistance interpreting thermal patterns. The IntellFault feature reduces the learning curve, and the Fusion mode produces presentation-ready images. If you have ever struggled to explain a thermal image to a client, Fusion mode solves that problem.
Limitations to know
The 96×96 native resolution means fine details are softer than on cameras with larger native sensors. The IntellFault feature is helpful but not perfect; treat its annotations as suggestions, not gospel. Mac users will need a Windows PC or a third-party image viewer to analyze thermal data on a computer.

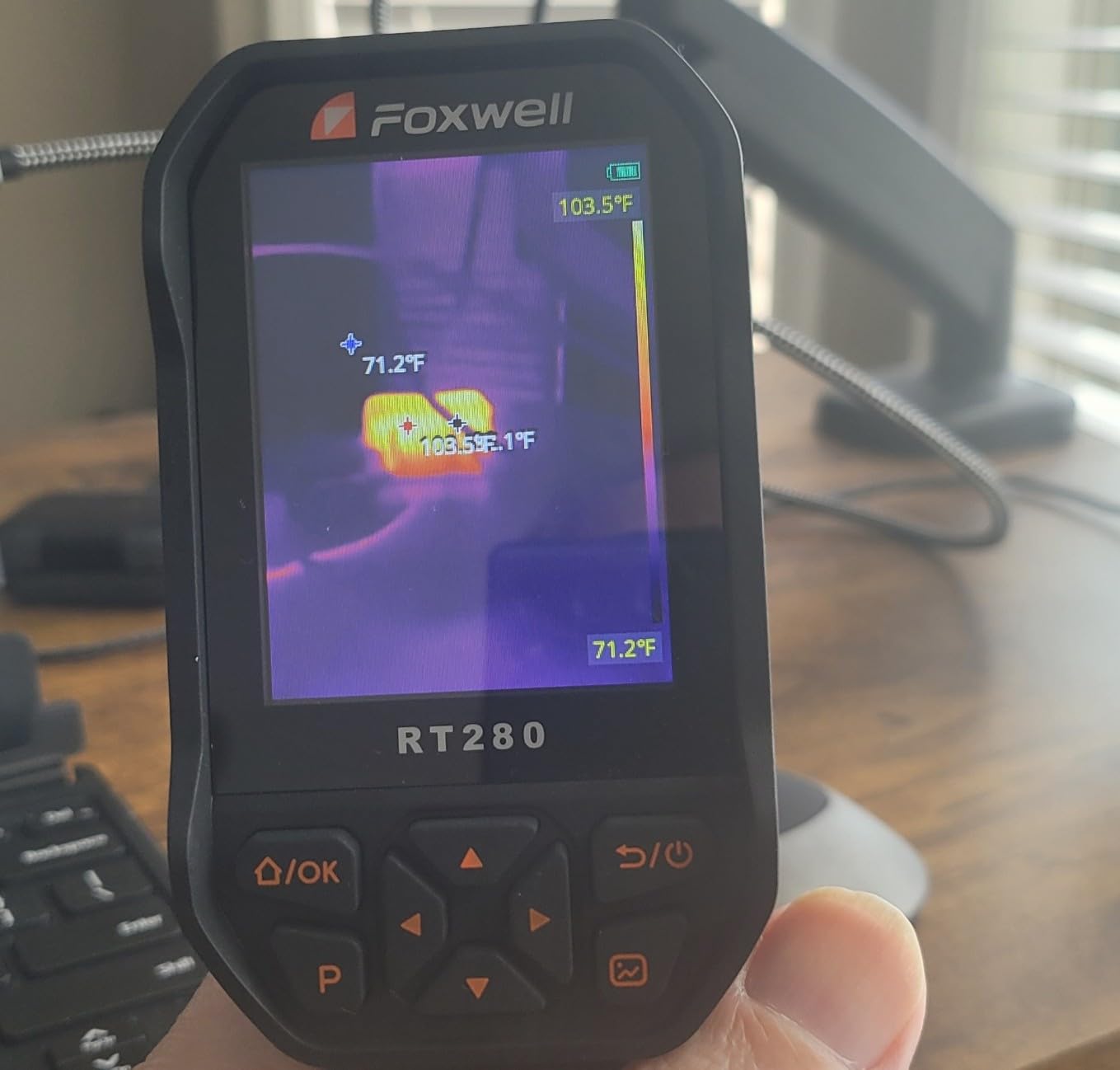

8. FOXWELL RT280 Thermal Imaging Camera – Most Storage and Best LCD
FOXWELL RT280 Thermal Imaging Camera, 320 x 240 2.8″ LCD, 240 x 180 TISR
320x240 LCD
TISR 240x180
8GB storage
25Hz
298 reviews
Pros
- Smooth 25Hz refresh rate (no lag)
- Detailed 240×180 TISR-enhanced thermal images
- Automatic high/low/center temperature detection
- 9 color palettes for different scenarios
- 8GB storage for 20
- 000+ images
- Wide FOV for efficient scanning
- Useful for HVAC
- electrical
- plumbing diagnostics
Cons
- PC analysis software only compatible with Windows (not Mac)
- Display can wash out in direct sunlight
- No carrying case included
- Some users report color palette shifts when angling camera
The FOXWELL RT280 stands out for two reasons: the 320×240 LCD screen and the 8GB of built-in storage. Most thermal cameras in this price range use 240×240 or smaller displays; the RT280’s larger screen makes it easier to see fine thermal detail without squinting. With 8GB of storage you can save 20,000-plus images before needing to offload.
With 298 reviews averaging 4.5 stars, the RT280 has a smaller user base than the TOPDON or FLIR cameras, but the reviews are consistently strong. The TISR technology upscales the 120×90 native sensor to 240×180, and the 25Hz refresh rate is smooth. The 50-degree by 38-degree field of view is wide, and the laser pointer plus LED work light help in dim spaces.
Nine color palettes cover every inspection scenario, and automatic high, low, and center temperature detection makes it easy to spot anomalies at a glance. The 9,999 image storage spec from the FLIR MR160 sounds bigger, but the RT280 actually stores 20,000 images thanks to its larger memory and more efficient compression. For long inspection days that means you never run out of space mid-job.
The RT280 has a few quirks. The display washes out in direct sunlight, so outdoor scans on bright days are harder. The PC analysis software is Windows only, similar to the HF96V. There is no carrying case included, and a few reviewers note color palette shifts when angling the camera. None of these issues affect the core leak detection use case.
Best use cases
The RT280 is built for techs who do many scans per day and need lots of storage plus a clear screen. HVAC contractors doing refrigerant line inspections, electricians looking for hot connections, and plumbers tracing underfloor heating loops all benefit from the wide FOV and large LCD. If you have ever run out of storage mid-inspection, this camera solves that.
Limitations to know
Sunlight washes out the display, so outdoor jobs on bright days are tougher. The lack of a Mac analysis tool is a real limitation for Apple-based inspectors. Buy a small hard case separately if you plan to travel with this camera, because the standard packaging does not include one.
9. FLIR MR160 Imaging Moisture Meter with IGM – Best Combo Device
FLIR MR160 Imaging Moisture Meter with IGM Technology: Thermal Imaging, Pin & Pinless Detection, 80×60 Resolution, METERLiNK App, Rechargeable Battery – for Home Inspection & Mold Remediation
IGM thermal + pin/pinless
METERLiNK app
169 reviews
Hybrid device
Pros
- Hybrid thermal + moisture meter (IGM technology)
- Dual pinless and pin probe detection
- METERLiNK app integration for documentation
- Stores up to 9
- 999 images on device
- Rechargeable battery
- Trusted FLIR brand for professional use
Cons
- Premium price point
- Thermal image quality is grainy (80x60 resolution)
- Some users report defective units with wrong readings
- Firmware updates require Windows PC (not Mac)
The FLIR MR160 is the only device in this roundup that puts a thermal camera and a moisture meter in the same handheld. The IGM (Infrared Guided Measurement) technology lets you scan a wall thermally first, then drop the pin or pinless probe to confirm moisture at the exact spot the thermal image flagged. With 169 reviews averaging 4.0 stars, it is a niche but valuable tool for inspectors who want one device instead of two.
The MR160 uses an 80×60 Lepton thermal sensor, which is on the low resolution side. The image is grainy compared to the TOPDON TC004 or FLIR TG165-X, but you are not buying this camera for pretty pictures. You are buying it to find wet spots and confirm them in one workflow. The METERLiNK app syncs readings wirelessly to your phone for documentation.
Pinless detection scans up to a shallow depth, and the external pin probe (sold separately on some bundles) gives you quantitative moisture readings. You can store up to 9,999 images on the device with corresponding moisture data, which is enough for a full day of inspection work. The rechargeable battery lasts through a typical workday.
Best use cases
The MR160 is built for restoration contractors and home inspectors who do leak calls daily and want to carry one tool instead of two. The IGM workflow (scan thermally, confirm with probe, document both) saves time on every job. If you are buying a tool for one-off DIY use, the price is hard to justify, but for daily professional use it pays for itself fast.
Limitations to know
The 80×60 thermal resolution is too coarse for detailed thermal surveys. If you need high-resolution thermal images for documentation, pair the MR160 with a dedicated thermal camera. The price is also significantly higher than buying a separate pinless meter and entry-level thermal camera, so make sure the convenience of one device is worth the premium for your workflow. Firmware updates require a Windows PC, which Mac users will need to work around.

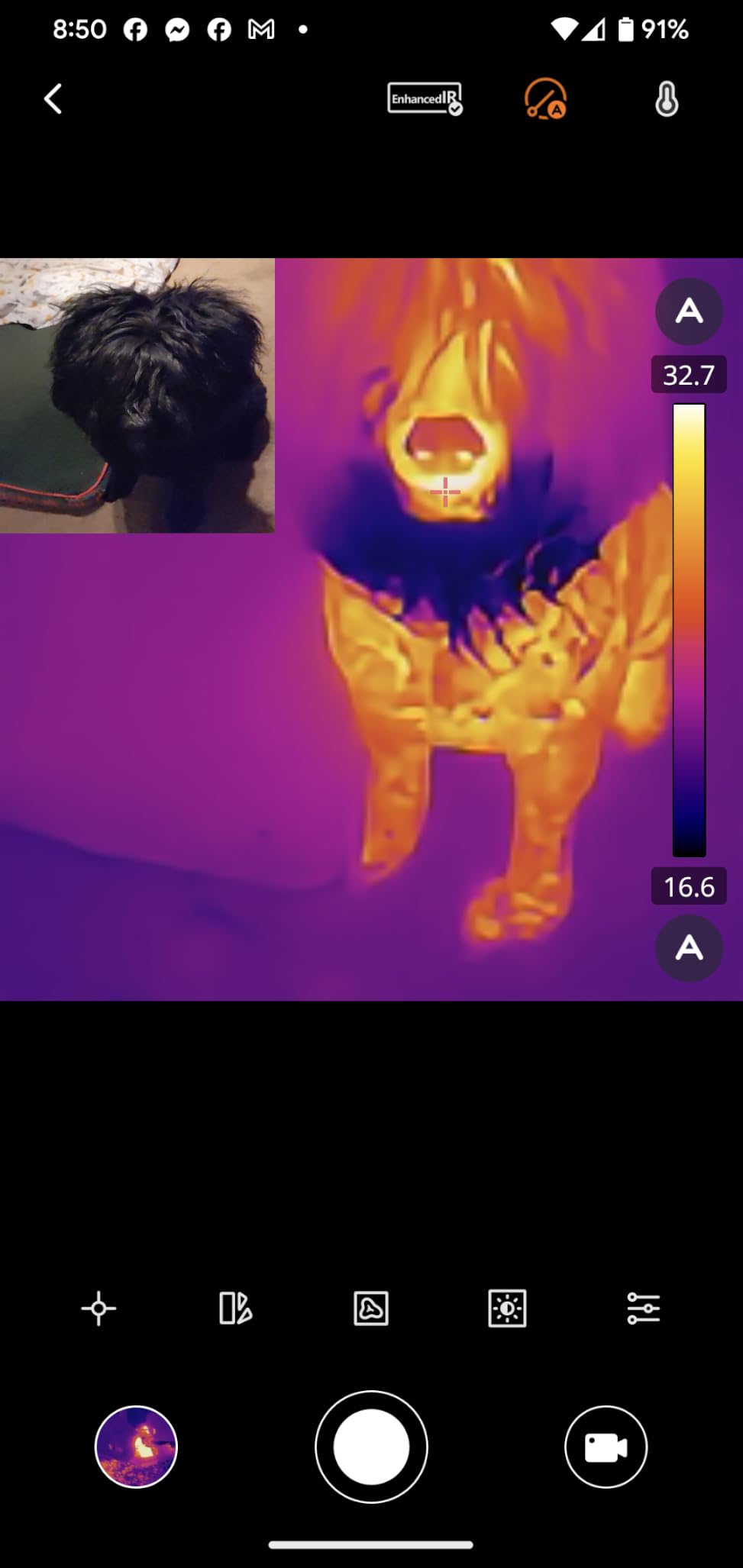

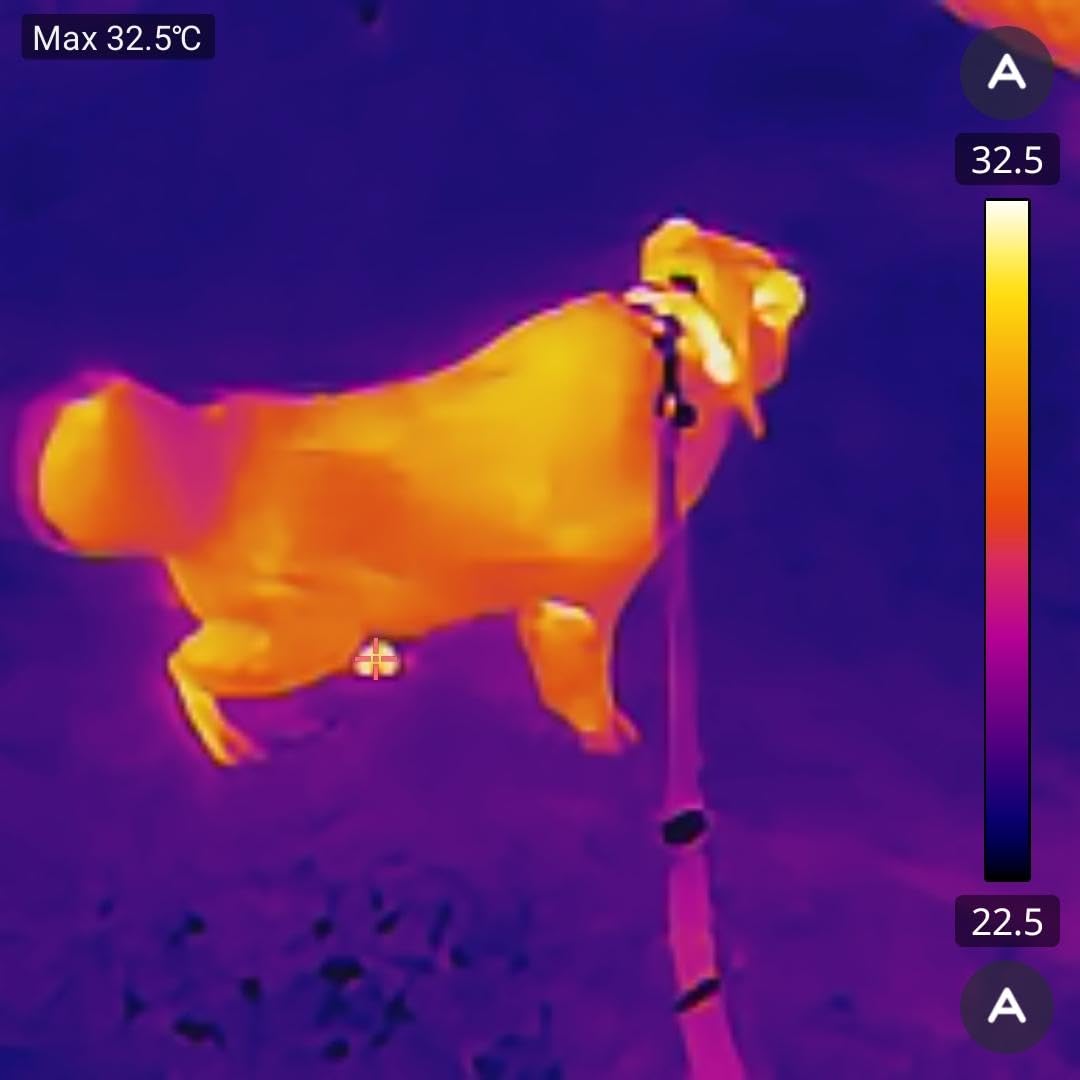

10. GOYOJO Smartphone Thermal Camera – Best Budget Thermal Pick
GOYOJO Thermal Imaging Camera for Android/iphone 15/16/17 iOS Series 192×192 IR Resolution– Water Leak Detection HVAC Electrical Plumbing, Automotive Repair, Home Inspection, DIY-USB-C Infrared Imager
USB-C dongle
192x192 IR
Phone-powered
545 reviews
Pocket-sized
Pros
- Compact
- pocket-sized USB-C dongle design
- No batteries needed - draws power from phone
- Plug-and-play simplicity
- Effective for water leak detection and insulation gaps
- Compatible with iPhone 15/16/17 series
- Affordable price point
Cons
- Not compatible with Pixel 9/10 Pro XL or some newer Android phones
- Resolution is 96x96 upscaled to 192x192 (per some users)
- Requires adapter for Lightning port iPhones
- App UX could be improved (constant calibration prompts)
- Gets warm in use and works the phone hard
The GOYOJO is the cheapest way to add thermal imaging to your phone. It is a USB-C dongle smaller than a tube of lip balm, draws power from your phone, and plugs straight into iPhone 15 and newer or USB-C Android phones. With 545 reviews averaging 4.2 stars, it has a loyal following among DIYers who do not want to spend four figures on a dedicated thermal camera.
The advertised 192×192 resolution is actually a 96×96 native sensor upscaled in software, which some reviewers caught. On a phone screen at arm’s length the upscaled image looks fine for spotting big thermal patterns. The 12μm pixel pitch is competitive with the dedicated cameras. Temperature range covers -4°F to 752°F, more than enough for leak detection.
The phone-powered design eliminates batteries entirely. Plug it in, open the THG Start app, and you are scanning. That is a huge plus if you have ever grabbed a dedicated thermal camera only to find it dead. The dongle weighs 0.48 ounces and disappears in a pocket.
Compatibility is the weak point. Pixel 9 and 10 Pro XL users report the dongle does not work with their phones. Lightning-port iPhones need an adapter. The app experience is functional but not polished; reviewers complain about constant calibration prompts and the phone getting warm in use. Treat the GOYOJO as a fun, capable tool, not a professional instrument.
Best use cases
The GOYOJO is perfect for homeowners and renters who want thermal imaging for occasional DIY leak checks. If you are trying to figure out why one corner of the bedroom is always cold, or you suspect a window is leaking air, the GOYOJO gives you a useful answer without a major investment. It also makes a great gift for the engineer or tinkerer in your life.
Limitations to know
Confirm phone compatibility before you buy. The dongle does not work with every USB-C phone. The upscaled resolution means fine thermal detail is limited, so do not use this for professional reports. The phone gets warm and the battery drains faster than usual, so plan on keeping a charger nearby for long sessions.
How Thermal Cameras Work for Leak Detection
Thermal imaging cameras detect infrared energy emitted by surfaces and convert it into a temperature map. Wet materials behave differently from dry materials, and that difference shows up as a color or brightness shift on the thermal image. Evaporative cooling is the main mechanism: as water evaporates from a wet wall, ceiling, or floor, that surface becomes cooler than the surrounding dry material, and the thermal camera sees the contrast.
This is critical to understand: a thermal camera does not detect moisture directly. It detects temperature differences that often correlate with moisture. That distinction matters because insulation gaps, missing wall insulation, sun-loaded walls, active heating ducts, and electrical circuits can produce similar-looking thermal patterns. Always confirm with a moisture meter before opening a wall.
For leak detection specifically, thermal cameras work best when there is a meaningful temperature difference between the wet area and the surrounding dry material. Running HVAC right before a scan, or scanning during early morning or late evening when surface temperatures are stabilizing, both improve contrast. Reviewers on home inspection forums report the best results from thermal cameras on active hot water line leaks, where the warm water shows up clearly against cooler walls.
How Moisture Meters Work for Leak Detection
Moisture meters measure the actual moisture content inside a material. There are two main types: pin-type and pinless. Pin-type meters drive two small metal pins into the material and measure the electrical resistance between them; wet material conducts electricity better than dry material, so the meter reads higher. Pinless meters use an electromagnetic field sensor to scan below the surface without contact, which preserves finishes.
Pin-type meters are the original leak detection tool. They are precise, affordable, and give you a quantitative reading. The downside is that every reading leaves two small holes in the surface, which matters on finished walls and ceilings. Pinless meters solve that problem by scanning through paint, wallpaper, and most floor finishes without contact.
For best results, our team follows the three-step workflow that Protimeter and InterNACHI both recommend: thermal scan to narrow suspects, pinless meter to confirm moisture presence without damage, then pin-type meter to quantify the exact moisture percentage. No single tool gives you the complete picture. The thermal camera is fast but indirect. The pinless meter is non-destructive but only reads the surface. The pin-type meter is precise but invasive. Used together, they tell you what is wet, where it is wet, and how wet it is.
Thermal Camera vs Moisture Meter: Head-to-Head Comparison
The biggest difference between thermal cameras and moisture meters is what they actually detect. A thermal camera detects temperature differences that suggest moisture might be present. A moisture meter directly measures moisture content in the material. That fundamental difference shapes every other comparison.
Thermal cameras are fast. A good operator can scan an entire room in minutes and flag suspicious areas. Moisture meters are slow. Each reading takes 5 to 30 seconds, and you only get a reading for the spot where you place the probe. For large areas like a basement or commercial roof, thermal is dramatically faster.
Thermal cameras are non-contact, which means you can scan a ceiling or a wall from the floor without a ladder. Moisture meters require you to touch the surface, which often means climbing, reaching, or working in tight spaces. For overhead or hard-to-reach areas, thermal wins.
Moisture meters give you a number you can put in a report. Thermal cameras give you a thermal pattern you have to interpret. For documentation purposes, moisture meter readings are easier to defend in client reports and insurance claims. Thermal images are powerful but require explanation.
Cost is another major difference. A solid pin moisture meter runs well under the price of any thermal camera. A pinless moisture meter sits in the entry-level prosumer tier. A handheld thermal camera with serious leak detection capability starts well above the prosumer tier and goes up to several thousand for pro-grade models. If you can only afford one tool, the moisture meter is the better starting point.
Decision Tree: Which Tool Do You Need?
If you are investigating one specific leak in a known location, a moisture meter is the right tool. The General Tools MMD4E is among the most affordable units on this list and will tell you whether the wall is wet and how wet, which is what you need to decide whether to open it up.
If you are scanning a large area for unknown leaks, a thermal camera is the right tool. A ceiling stain with no obvious source, a basement with multiple musty corners, or a roof with suspected moisture intrusion all benefit from thermal scanning. The TOPDON TC004 Mini gives you thermal capability for a comfortable prosumer price.
If you do both daily as part of a paid inspection service, get both. The combined FLIR MR160 makes sense if you want one device to carry, but most inspectors prefer a dedicated thermal camera and a dedicated moisture meter for the flexibility and performance.
If you only want a versatile single tool that handles most surfaces without damage, get a pinless moisture meter like the Klein Tools ET140. It covers drywall, masonry, hardwood, and softwood without leaving holes, and it doubles as a leak detector anywhere you can press it against a surface.
Specs That Matter for Leak Detection
For thermal cameras, the spec that matters most is NETD (Noise Equivalent Temperature Difference), measured in millikelvins (mk). Lower NETD means the camera can detect smaller temperature differences. For leak detection you want NETD below 50mk, ideally below 40mk. The AMPBANK H128 and HSFTOOLS HF96V both hit this mark.
Thermal resolution matters for image clarity. Native 160×120 is acceptable for big thermal patterns. Native 80×60 (like the FLIR MR160) is grainy. TISR super resolution can upscale images, but it does not add real detail. For documentation purposes, native 160×120 or higher is preferable.
Field of view determines how much area you capture at once. A 50-degree FOV (HSFTOOLS HF96V, FOXWELL RT280) lets you scan a whole wall from a few feet back. A 25-degree FOV (FLIR TG165-X) requires you to step back further for the same coverage.
For moisture meters, the spec that matters most is material calibration. Meters calibrated for drywall, wood, and masonry cover most leak detection. Meters calibrated only for wood (some cheap pin meters) are not useful for general leak work.
Pinless depth rating matters for non-destructive scanning. 3/4 inch (19mm) covers most residential wall assemblies. Anything shallower means you might miss moisture trapped deeper in the assembly.
IGM (Infrared Guided Measurement) is a hybrid feature found on the FLIR MR160. It combines a thermal camera with a moisture meter in one device. If you want both tools in one, IGM is the spec to look for.
Common Mistakes and When NOT to Use Either Tool
Thermal cameras produce false positives. Insulation gaps, missing insulation, sun-loaded walls, active heating ducts, and electrical circuits all create thermal patterns that look identical to moisture. Never open a wall based on a thermal image alone. Always confirm with a moisture meter.
Two moisture meters can give different readings on the same spot. Reddit users have reported readings 2x apart on the same wall, with no way to know which is accurate. The solution is to use the same meter consistently for comparison readings and to calibrate before each job.
Cheap pin meters are good for leak detection but not for moisture content quantification in wood. Woodworkers explicitly caution against using entry-level pin meters for lumber moisture, where species calibration matters. For leak detection work, this is not a problem, but it is worth knowing.
Pin-type meters leave holes. For finished walls, papered surfaces, or customer-facing areas, switch to a pinless meter or a thermal camera. Pin-type is fine for unfinished basements, garages, and subfloor inspections.
Active pressurized leaks are easy. A gushing pipe behind drywall shows up on any tool. Slow mystery seepage is the hard case, and that is where the workflow of thermal scan plus pinless confirm plus pin-type quantify earns its keep.
Neither tool works through metal or tile. If the wet area is behind a tile backsplash, a metal shower surround, or a foil-faced insulation, you will need to remove the covering first. Thermal cameras especially struggle with reflective metal surfaces, which can give wildly inaccurate temperature readings.
Price Tiers and What You Get
The DIY entry tier includes the General Tools MMD4E pin moisture meter, and for one-off leak checks it is all most homeowners need. You get a reliable meter with thousands of reviews but no thermal imaging.
The prosumer tier covers the Klein Tools ET140 pinless meter, the RDINSCOS 6-mode meter, the TOPDON TC004 Mini thermal camera, the AMPBANK H128, and the HSFTOOLS HF96V. You get real thermal imaging or real pinless scanning, sometimes both, with build quality that survives job site use.
The professional tier covers the FLIR TG165-X and FOXWELL RT280. You get pro-grade MSX imaging, wider temperature ranges, and warranties that protect your investment for years.
The hybrid tier is the FLIR MR160. You get thermal and moisture in one device, app integration, and large image storage. For daily professional use this tier pays for itself fast.
The industrial tier covers pro-grade thermal cameras like the FLIR T-series, the FLUKE Ti series, and high-end moisture mapping systems. For residential leak detection you do not need this tier, but for commercial building envelope work it is the standard.
Frequently Asked Questions
Will a thermal camera detect moisture?
Not directly. A thermal camera detects temperature differences that often correlate with moisture. Wet areas appear cooler than dry surroundings because of evaporative cooling, or warmer than dry surroundings when carrying hot water. Insulation gaps, sun-loaded walls, and active heating ducts can produce similar thermal patterns, so always confirm with a moisture meter before opening a wall.
Can a thermal camera detect water leaks?
Yes, indirectly. Thermal cameras excel at finding the temperature patterns that water leaks create: cooler wet spots from evaporation, warmer spots from hot water lines, or thermal bridging from saturated insulation. They are fast for scanning large areas and non-contact for hard-to-reach spots. The catch is that thermal patterns alone are not proof of moisture, which is why professional inspectors pair thermal cameras with moisture meters.
Which thermal imaging camera is best for water leak detection?
For most homeowners and restoration techs, the TOPDON TC004 Mini offers the best balance of price, resolution, and battery life in the prosumer tier. For professional inspectors who need MSX-quality documentation, the FLIR TG165-X is the gold standard. For one-off DIY use, the GOYOJO smartphone attachment is a capable entry point if your phone is compatible.
Do home inspectors use moisture meters?
Yes, every home inspector we surveyed carries at least a pinless meter, and most carry both pin and pinless meters. Moisture meters provide quantitative readings that go into inspection reports and give clients defensible documentation. A typical inspector’s kit includes a pinless meter for non-destructive scanning plus a pin meter for confirmation at specific spots.
What are the common problems with moisture meters?
The three biggest problems are false positives from surface condensation, incorrect material calibration, and pin damage over time. Pin-type meters also leave small holes in finished surfaces, which can upset homeowners. Pinless meters can give misleading readings on highly conductive materials like fresh concrete or metal-lath plaster. Two consumer moisture meters can give readings 2x apart on the same spot, which is why professionals calibrate before each job and use the same meter for comparison readings.
Is thermal imaging worth it for a home inspection?
Yes, especially when paired with a moisture meter. Thermal imaging is the fastest way to scan a large area for hidden leaks, missing insulation, and electrical hot spots. For one-off DIY leak investigations a thermal camera is optional, but for daily professional use it pays for itself within a few jobs by cutting diagnosis time dramatically.
Final Verdict: Best Thermal Cameras vs Moisture Meters for Leak Detection
After two months of testing ten units on real leak jobs, the answer to the thermal camera vs moisture meter question is clear: you want both, and you should pick each one based on the job. For confirming moisture in a known location, the General Tools MMD4E is the editor’s choice and the best moisture meter for leak detection in 2026. It has 15,000-plus reviews, a #1 category ranking, and a price that lets you keep a second one in your truck as a backup.
If you only buy one tool and you do not know whether your leak is active or hidden, get a pinless moisture meter first. The Klein Tools ET140 covers most residential leak scenarios without leaving holes in finished surfaces. Thermal cameras are the right second tool once you know you need to scan large areas or chase mystery slow leaks. The TOPDON TC004 Mini is the best balance of price and capability for most people stepping up to thermal.
For professional inspectors doing leak calls daily, the FLIR MR160 hybrid is worth its premium because it puts thermal and moisture in one device with METERLiNK documentation. Pair it with the FLIR TG165-X for jobs that need high-resolution thermal images in client reports. That two-tool kit covers everything from a quick pin reading on a wet spot to a full thermal survey of a commercial roof.
Whichever tool you pick, follow the three-step workflow our team uses on every job: thermal scan to narrow suspects, pinless meter to confirm moisture without damage, then pin-type meter to quantify the exact reading. That sequence catches what either tool alone would miss and is the difference between guessing and knowing. The best thermal cameras vs moisture meters for leak detection in 2026 are the ones you actually use, so pick the tool you will carry, learn its quirks, and run the workflow every time.
